Altova MobileTogether Designer

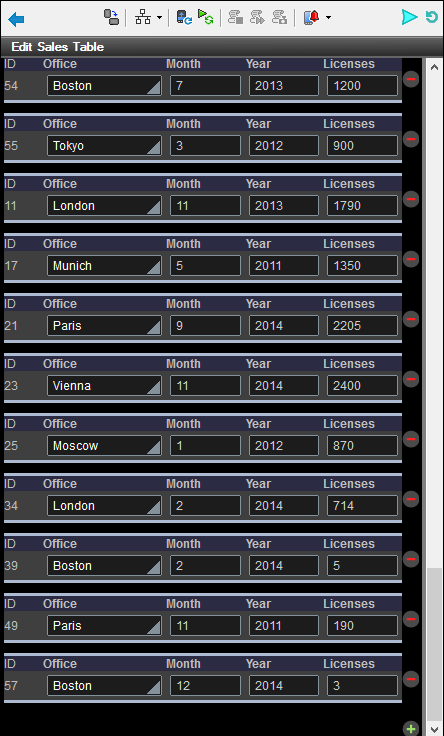

The Edit Sales table, like the Edit Offices Table, has been created on a separate top page. When the solution runs, this page is accessed from the main page (screenshot below left). Clicking the button Edit Sales Table loads the Edit Sales table (screenshot below right). The Sales table has multiple rows, each of which has a non-editable (sales item) ID column, editable Office, Month, Year, and Licenses columns, and a Delete control (see screenshot below right). Additionally, there is an Append Row control below the last row, a Submit button in the Edit Sales Table bar, and a Back button to go back to the previous page (the main page in this case).

MTDDBCSimulator01   Click to expand/collapse

In the design, the Edit buttons (first screenshot below) have both been assigned the Go to Page action on their respective OnButtonClicked events (right-click the button and select Control Actions for OnButtonClicked). These Go to Page actions (second screenshot below) load the respective target pages.

MTDDBCEditButtons

MTDDBCOnButtonPressed



Creating the editable Sales table

The Sales table in the DB has the structure displayed in the data tree of $DB2 (screenshot below). Since the @id attribute is the primary key, it cannot be changed. This means that when a new record is appended, the end user cannot enter an @id value via the solution. The @id value must be generated automatically using an XQuery expression. The XQuery expression is inserted by using the context menu command, Ensure Exists before Page Load (XPath Value):



let $all := $DB2/DB/RowSet/Row/@id

let $ids := remove($allindex-of($all""))

let $id := if (empty($ids)) then 1 else max($ids) + 1

return $id

MTDDBCDataSrcDB2

In the design, we will do the following:



To...

Do this...

Display all (Sales) rows

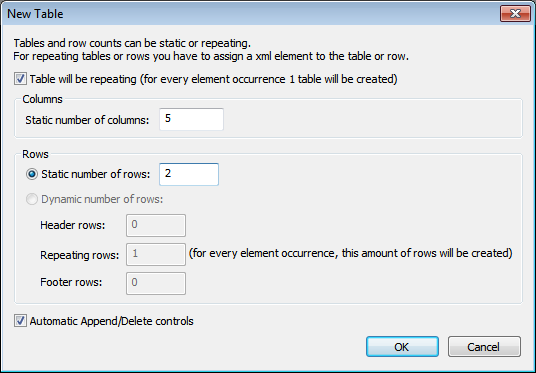

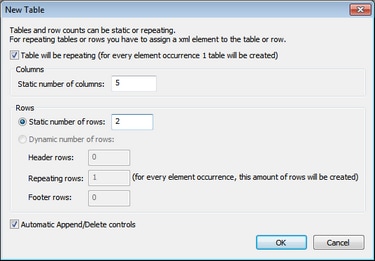

Add a repeating table, with the Sales row as the repeating element

Include controls for deletion and addition of rows

When adding the table, enable the automatic inclusion of Delete/Append controls

Enable editing of editable values

Add a combo box and edit field controls that have page source links

Save changes back to DB

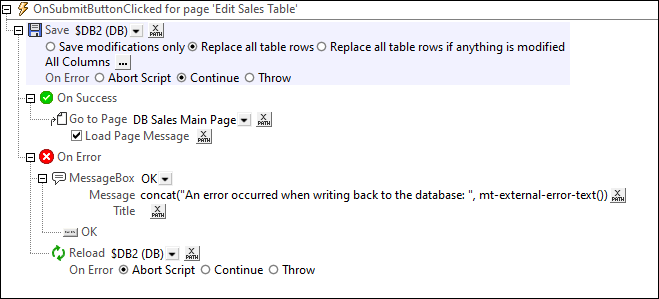

Add a Save action to the page's OnSubmitButtonClicked event;

Also, right-click $DB2 and toggle on Create OriginalRowSet

Go back to the main page

Add a Go to Page action to the page's OnBackButtonClicked event
