Altova MobileTogether Designer

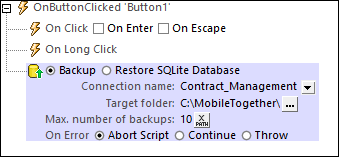

This action (screenshot below) enables you to backup an SQLite database multiple times to a folder you designate. You can subsequently restore the SQLite database from one of these backups. This feature is available only on MobileTogether Server Advanced Edition.


To set backups, do the following:


1.Select Backup.

2.Select the SQLite DB connection that you want to back up.

3.Select the folder where the backups should be stored. This can be a path that is relative to the server-side solution's working directory or an absolute path. The file name will be the connection name (for example, Contract_Management in the screenshot above) with the current timestamp.

4.Optionally, enter the maximum number of backups. After this number is exceeded, the oldest backup will be deleted. If no value is set or if a value of 0 is set, then an unlimited number of backups is allowed.


To restore the SQLite database from a backup, do the following:


1.Select Restore.

2.Select the connection to the SQLite DB that you want to restore.

3.Select the relative or absolute path of the backup file from which to restore. Relative paths must be be relative to the server-side solution's working directory.



After a backup has been created, the path to it can be obtained by calling the mt-last-file-path() function. Note that this function returns the full file path.

After a backed up file is restored via the Restore action, the backup file is not deleted. After a Restore action, the mt-last-file-path() function returns the full path of the backup file (that was used for the restore).

If the DB is locked when a restore is attempted, an error is returned. There are no retries or timeouts.



Error processing

The On Error option lets you define what should be done if an error occurs. Since the error handling can be precisely defined for this action, errors on such actions (that provide error handling) are treated as warnings—and not errors. The advantage is that you do not need to check errors on actions for which error handling has already been defined. The following error handling options are available:


Abort Script: After an error occurs, all subsequent actions of the triggered event are terminated. This is the default action if an error occurs. If you wish to continue despite an error, select either the Continue or Throw option.

Continue: Actions are not terminated. Instead, you can select what to do in either event: when there is no error (On Success), or when there is an error (On Error). For example, you might want to display a message box saying whether a page load was successful or not.

Throw: If an error is detected, this option throws an exception that is stored in the Try/Catch action's variable. The Catch part of the Try/Catch action is used to specify what action to take if an error occurs. If no error occurs, then the next action is processed. See the section Try/Catch action for details.
