Chart

Home Prev Top Next

The Chart control enables data from a source data file to be displayed in the form of a chart. The available chart types are: pie charts, bar charts, line graphs, area charts, candlestick charts, and gauge charts. Data for the X-Axis, Y-Axis, and other chart components is selected with XPath expressions. The context node for these XPath expressions is set by dragging it from the source data tree and dropping it onto the chart control in the design.



The chart's display settings within the page are defined in the Styles & Properties Pane. The settings for chart type, data selection, and appearance are defined in the Chart Configuration dialog. This dialog is accessed by clicking the Additional Dialog button of the Chart Settings property, or by double-clicking the chart in the design.



For detailed information about how to configure charts, see the Charts section.



Click to expand/collapseNotes

•When the control is associated with a data source node (page source link), placing the mouse over the control (in Page Design View) displays the associated node in a popup.

•All page source links in the page source tree are displayed in a bold font. Tree nodes that are not page source links are displayed in normal font.

•Placing the mouse over the page source link in the design tree displays information about the associated control.

•To remove a data-source node association (and therefore the data in the control), right-click the control (in Page Design View) and click Unassign Page Source Link <NodeName>.

•To reset a style or property (in the Styles & Properties Pane), select the property and click Reset in the pane's toolbar.

•The values of several properties can be set by using XPath expressions. This allows values to be dynamic: that is, generated via calculations, or from data source nodes, at runtime. To set an XPath expression, click Edit XPath in the toolbar of the Styles & Properties Pane.

•To edit the XPath expression of a style or property (in the Styles & Properties Pane), select the style or property, and click Edit XPath in the pane's toolbar.

•To copy a control to another location in the design, press Ctrl and drag-and-drop the control to the desired copy location.

•To assign specific properties for a control, define one or more classes for the control (via the Browser CSS Class property), and then assign rules for the class/es in an external CSS file (that you specify in the Browser Settings dialog).

•A control's CSS properties can be defined in the Styles & Properties Pane and/or in an external CSS file. Those defined in the Styles & Properties Pane have priority.



Chart events

The OnimageClicked event is available (the image that is clicked is the chart). To define actions for the chart's OnImageClicked event, right-click the chart and, from the context menu that appears, select Control Actions for OnImageClicked. This displays the Actions dialog for chart events. For a description of the actions that can be defined for this event, see the Actions section.



Click to expand/CollapseOnChartClicked (OnClick, OnLongClick)

The end user can click the control in one of two ways: a short tap (On Click) or a longer press (On Long Click). A sequence of different actions can be specified for each type of click (see screenshots at left and middle below). The sequence that will be executed depends on the type of click that the end user performs. You can also define that additional actions be executed after those of the end-user click; these actions are defined after the On Long Click event (see screenshot below right)..

MTDActionOnClick   MTDActionOnLongClick   MTDActionOnClickOnLongClick

•On Click: The action/s to perform when the control is tapped (see screenshot above left).

•On Long Click: The action/s to perform when the control is pressed for a longer time than a tap (see screenshot above center).

•Additional actions: The action/s to perform after the On Click or On Long Click actions have been executed (see screenshot above right). If no action has been set for the On Click or On Long Click events, then the additional action/s are performed directly on a click or long-click.

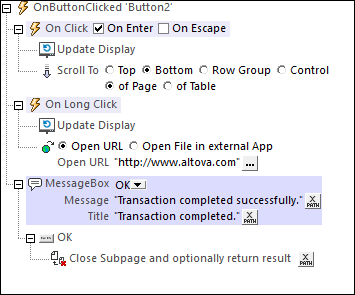

You can combine actions for the different click events. The example in the screenshot below shows how this is done for the Button event, but it works in the same way for other controls as well.

MTDActionOnClickMultiple

The screenshot above shows that the On Click and On Long Click events each has a sequence of actions defined for it. An additional MessageBox event is defined after the On Long Click event. This MessageBox event will be executed after the On Click or On Long Click sequence of actions has completed.



On Enter/Escape

If the control's On Enter or On Escape check box is selected, then the control's actions are executed when the respective key (Enter or Escape) is tapped. The key-tap (Enter or Escape) serves as an alternative to the On Click event, and will work additionally to the click. The screenshot below shows the On Enter and On Escape check boxes of the Button event. Other controls that provide this option look similar and work similarly.



MTDOnEnterEscapeCheckBoxes



This setting can also be accessed via the control's On Enter/Escape property, which is described below.



Note:If you select the Page | Show/Define Tab Order menu command, then controls that have been assigned an Enter or Escape key-tap are marked with a symbol of the respective key.



Note:This feature is available on Web clients and Windows clients, and in simulations of all clients.





Chart properties

The control's properties are available in the Styles & Properties Pane, and are listed below in the order in which they appear.



Click to expand/collapseName

The name is used to reference the control from elsewhere in the page or project. Double-click inside the value field to edit.



Click to expand/collapseAll Styles

The All Styles property becomes visible if the All Styles setting of the More Project Settings dialog has been set to true. (The default of this setting is false.)



The property enables you to set all of the component's styles via a single XPath map expression, such as the two map expressions below:



map{

  "Bold Text"        : $XML1/R/@bold = "1",

  "Italic Text"      : true(),

  "Text"             : "hello",

  "Text Color"       : "red",

  "Background Color" : $XML1/R/@background,

  "Text Size"        : $XML1/R/@textsize

  }



map{

  "Style Sheet"      : "Sheet-1"

  }



Note the following points:



•When you enter a value for the All Styles property—even if it is not a map—all the styling properties of the current component in the Styles & Properties Pane will no longer be visible .

•This is an advanced feature, so you must ensure that your XPath map expression is correct, both syntax and values.

•You can enter the key–value pairs of the map in any order.

•The key names are the names of style properties (or styles). In the first map above, for example, Bold Text and Text Size are style names. The styles that are available for a particular component are listed under that component in the Styles & Properties Pane.

•You can also specify a style sheet to use, as shown in the second map above.



Click to expand/collapseChart Settings

Click the Additional Dialog button to display the Chart Configuration dialog. The settings you make in this dialog will apply to the chart that is currently selected in the design. For a description of how to configure charts, see the section, Charts.



Click to expand/collapseID

This property must be entered when the chart is placed in a repeating table or repeating row of a dynamic table. The value of the ID property can be any string, but must evaluate to a different ID for each instantiated chart. This can be achieved by assigning a dynamic XPath expression as the value of the property.



Click to expand/collapseCreate Before Load

In the combo box, select the value you want: true or false. If true, the chart or Base64 image is created before the page loads. If false, a page sources action must be used to create the chart or image. The default value is true.



Click to expand/collapseChart Creation Width

Sets the width, in pixels, of the chart to be generated. Click the Edit XPath icon and, in the dialog that appears, enter an expression that returns a numeric value. This value will be the width, in pixels, dp or sp, of the chart to be generated.



For information about the relationships between pixels, dp (device-independent pixels), and sp (scale-independent pixels), see Sizes: Pixels, DPI, DP, SP.



Click to expand/collapsePoints versus pixels on iOS devices

If you enter pixel values for properties that define lengths, then, when rendering for iOS devices, these values are read as points in the viewport coordinate space. The viewport coordinate space is the canvas on which the design components are drawn, and a point is the length unit in this space; a point here is not the typographical unit that is equal to 1/72 of an inch. The iOS device automatically maps the points of the viewport coordinate space to pixels in the device coordinate space. Mapping the values in this way (from viewport values to device values) ensures that design components maintain the same size relationship to both the canvas and to each other, no matter what the resolution of the iOS device is or what units are used.



In MobileTogether Designer, you can use the $MT_CanvasX and $MT_CanvasY dynamic variables to find out the current viewport (canvas) dimensions and so obtain lengths that are relative to these dimensions. (For iOS devices, the values returned by these variables are calculated as follows: The pixel dimensions of the current device coordinate space are converted (using an appropriate conversion factor) to point values in the viewport coordinate space. These point values—as numbers—are returned by the variables as pixels for use in the design.) For example, if you want an image to be half the width of the viewport, then give it a width in pixels that is equal to $MT_CanvasX * 0.5; the XPath expression for this image width would be concat($MT_CanvasX * 0.5, 'px').



Click to expand/collapseChart Creation Height

Sets the height, in pixels, of the chart to be generated. Click the Edit XPath icon and, in the dialog that appears, enter an expression that returns a numeric value. This value will be the height, in pixels, dp or sp, of the chart to be generated.



For information about the relationships between pixels, dp (device-independent pixels), and sp (scale-independent pixels), see Sizes: Pixels, DPI, DP, SP.



Click to expand/collapsePoints versus pixels on iOS devices

If you enter pixel values for properties that define lengths, then, when rendering for iOS devices, these values are read as points in the viewport coordinate space. The viewport coordinate space is the canvas on which the design components are drawn, and a point is the length unit in this space; a point here is not the typographical unit that is equal to 1/72 of an inch. The iOS device automatically maps the points of the viewport coordinate space to pixels in the device coordinate space. Mapping the values in this way (from viewport values to device values) ensures that design components maintain the same size relationship to both the canvas and to each other, no matter what the resolution of the iOS device is or what units are used.



In MobileTogether Designer, you can use the $MT_CanvasX and $MT_CanvasY dynamic variables to find out the current viewport (canvas) dimensions and so obtain lengths that are relative to these dimensions. (For iOS devices, the values returned by these variables are calculated as follows: The pixel dimensions of the current device coordinate space are converted (using an appropriate conversion factor) to point values in the viewport coordinate space. These point values—as numbers—are returned by the variables as pixels for use in the design.) For example, if you want an image to be half the width of the viewport, then give it a width in pixels that is equal to $MT_CanvasX * 0.5; the XPath expression for this image width would be concat($MT_CanvasX * 0.5, 'px').



Click to expand/collapseControl Action

Click the Additional Dialog button to display the control's Actions dialog. You can set actions to perform when a control event is triggered. The control's event/s are predefined and each is shown in its own tab in the right-hand pane of the Actions dialog. A library of actions is displayed in the left-hand pane. You can drag an action from the left-hand pane into an event's tab and then define the properties of the action. For each event, multiple actions can be set up. They will be executed in the order in which they occur, from top to bottom.



After defining a control's actions, you can access and edit them at any time by clicking the property's Additional Dialog button. Alternatively, you can access a control event by right-clicking the control and selecting the control's event in the context menu that appears.



Click to expand/collapseVisible

An XPath expression that should evaluate to true() or false(). If the expression evaluates to false()—and only if it evaluates to false()—then the control is not visible. If the expression evaluates to true() or returns some other value, then the control is visible. The default is true(). Double-click inside the value field, or click the XPath button, to enter or edit an XPath expression. The Visible property can be used to render an object visible or not depending upon whether an XPath expression evaluates to true(). As a result, the display of an object can be made to be dynamically dependent on the content or structure of data.



Note:  For information about the visibility of spanned columns/rows, see Table Properties.



Note:  The $MTControlValue variable is not available for the evaluation of the Visible property. If it is used, then a validation error results.



Click to expand/collapseTooltip

Sets the text that appears as a tooltip when the end user hovers over the control with the mouse or long presses the control. A tooltip provides useful information to the end user about the control. Double-click inside the value field to edit. If an action has been set for a long press of the control, then no tooltip will be shown on a long press.



Note:   Tooltips are not available on all controls, and for some controls they are not available on all platforms. On iOS, tooltips are not available for Edit Field or Signature controls.



Click to expand/collapseHorizontal Alignment

This property applies in the case of some controls (such as images and vertical lines) to the control, in other cases (such as radio buttons and check boxes) to the text that accompanies the control. The property sets the horizontal alignment of the control or text to left, center, or right. Default is left for all controls except vertical lines, for which it is center. The property's value can also be specified via an XPath expression (which enables the value to be generated dynamically).



Click to expand/collapseVertical Alignment

Sets the vertical alignment to top, middle, or bottom. Default is middle. The value can also be specified via an XPath expression (which enables the value to be generated dynamically). For Check Box controls, the property sets the vertical alignment of the check box relative to its text if the text is multiline (see the Multiline property)



Click to expand/collapseControl Width

Sets the width of the control. Select a value from the property's combo box. The following values are available:



•fill_parent: makes the control as wide as the parent, which could be, for example, a table cell or the page

•wrap_content: makes the control only as wide as the control's content requires; when this value is selected, the property Max Control Width becomes available

•wrap_content_longest_entry: is available for combo box controls and makes the combo box as wide as the longest content requires; when this property value is selected, the property Max Control Width becomes available

•percent value: a percentage of the page width; select a value from the dropdown list, or enter a value directly

•pixel, dp, or sp value: select a pixel, dp, or sp value from the dropdown list, or enter a value directly



In effect, fill_parent creates a maximum width, while wrap_content creates a minimum width. If the combo box is within a table cell, for example, fill_parent would let the combo box fill the cell whereas wrap_content might not fill the cell.



The default value is fill_parent for all controls except the following:



•Image and Chart: For these, the default is wrap_content.

•Geolocation Map: The default is the smaller of the two values $MT_CanvasX and $MT_CanvasY. These two dynamic variables give, respectively, the width and height of the device's viewport. Since the default of both Control Height and Control Width are the same (in each case, the smaller of $MT_CanvasX and $MT_CanvasY), the default shape and size of the viewport in the control will always be a square with side equal to min($MT_CanvasX, $MT_CanvasY).



For information about the relationships between pixels, dp (device-independent pixels), and sp (scale-independent pixels), see Sizes: Pixels, DPI, DP, SP.



Click to expand/collapsePoints versus pixels on iOS devices

If you enter pixel values for properties that define lengths, then, when rendering for iOS devices, these values are read as points in the viewport coordinate space. The viewport coordinate space is the canvas on which the design components are drawn, and a point is the length unit in this space; a point here is not the typographical unit that is equal to 1/72 of an inch. The iOS device automatically maps the points of the viewport coordinate space to pixels in the device coordinate space. Mapping the values in this way (from viewport values to device values) ensures that design components maintain the same size relationship to both the canvas and to each other, no matter what the resolution of the iOS device is or what units are used.



In MobileTogether Designer, you can use the $MT_CanvasX and $MT_CanvasY dynamic variables to find out the current viewport (canvas) dimensions and so obtain lengths that are relative to these dimensions. (For iOS devices, the values returned by these variables are calculated as follows: The pixel dimensions of the current device coordinate space are converted (using an appropriate conversion factor) to point values in the viewport coordinate space. These point values—as numbers—are returned by the variables as pixels for use in the design.) For example, if you want an image to be half the width of the viewport, then give it a width in pixels that is equal to $MT_CanvasX * 0.5; the XPath expression for this image width would be concat($MT_CanvasX * 0.5, 'px').



Click to expand/collapseMax Control Width

This property is available only when the control's Control Width property has been set to wrap_content. The Max Control Width property sets the maximum width of the control. Select a value from the property's combo box. The following values are available:



•percent value: a percentage of the page width; select a value from the dropdown list, or enter a value directly

•pixel, dp, or sp value: select a pixel, dp, or sp value from the dropdown list, or enter a value directly



Click to expand/collapseLimit Control Height to Canvas

Select one of the allowed values (true or false) in the combo box. In case the control's height exceeds the device height, a value of true restricts the height to that of the device display. Default is true.



Click to expand/collapseMargin

Sets the margin offsets of the control (or page) relative to the surrounding objects or to the borders of the containing object. Select a value in pixels, dp, or sp from the dropdown list of the combo box, or double-click in the value field to enter a length value. The specified offset will be created on all four sides of the control or page. If you wish to set a different margin for any of the four sides, expand the Margin property to display the individual margin properties (left, right, top and bottom), and set the different value. For example: If you set Margin to be 6px and Margin Bottom to be 12px, then the top, left and right margins will be 6px and the bottom margin will be 12px.



For information about the relationships between pixels, dp (device-independent pixels), and sp (scale-independent pixels), see Sizes: Pixels, DPI, DP, SP.



Click to expand/collapsePoints versus pixels on iOS devices

If you enter pixel values for properties that define lengths, then, when rendering for iOS devices, these values are read as points in the viewport coordinate space. The viewport coordinate space is the canvas on which the design components are drawn, and a point is the length unit in this space; a point here is not the typographical unit that is equal to 1/72 of an inch. The iOS device automatically maps the points of the viewport coordinate space to pixels in the device coordinate space. Mapping the values in this way (from viewport values to device values) ensures that design components maintain the same size relationship to both the canvas and to each other, no matter what the resolution of the iOS device is or what units are used.



In MobileTogether Designer, you can use the $MT_CanvasX and $MT_CanvasY dynamic variables to find out the current viewport (canvas) dimensions and so obtain lengths that are relative to these dimensions. (For iOS devices, the values returned by these variables are calculated as follows: The pixel dimensions of the current device coordinate space are converted (using an appropriate conversion factor) to point values in the viewport coordinate space. These point values—as numbers—are returned by the variables as pixels for use in the design.) For example, if you want an image to be half the width of the viewport, then give it a width in pixels that is equal to $MT_CanvasX * 0.5; the XPath expression for this image width would be concat($MT_CanvasX * 0.5, 'px').



Click to expand/collapseOn Enter/Escape

Takes one of three values:



•OnEnter: Specifies that the actions of this control are executed when the Enter key is tapped.

•OnEscape: Specifies that the actions of this control are executed when the Escape key is tapped.

•None: No action when either Enter or Escape is pressed. This is the default value.



If XPath expressions are used to generate the values, the expressions must evaluate to "OnEnter" or "OnEscape". If more than one control on a page is given the same value (OnEnter or OnEscape), then the first visible and enabled control that has the value is selected when the key is tapped. (See the Visible and Enabled/Editable properties.)



This setting can also be made via the dialog to set the control's OnClicked actions (see the description of the control's events above).



Note:If you select the Page | Show/Define Tab Order menu command, then controls that have been assigned an Enter or Escape key-tap are marked with a symbol of the respective key.



Note:This feature is available on Web clients and Windows clients, and in simulations of all clients.



Click to expand/collapseStyle Sheet

The Style Sheet property sets the style sheet to use for the control. The dropdown list of the Style Sheet property's combo box displays all the user-created style sheets that have been defined in the project. Select the style sheet you want to use for the control. Alternatively, you can use an XPath expression to select the style sheet you want; this has the advantage that you can make the selection of the style sheet conditional (see Applying User-Created Style Sheets). See the section Style Sheets for more information.



Click to expand/collapseBrowser CSS Class

The name of one or more CSS classes that you want to associate with this control. Use a space to assign multiple classes: LabelClassOne LabelClassTwo. These classes can then be used in a CSS file (specified in the Browser Settings dialog) to assign properties specifically for this control. You can also use an XPath expression to generate or fetch the names of the class(es).
