Altova MobileTogether Designer

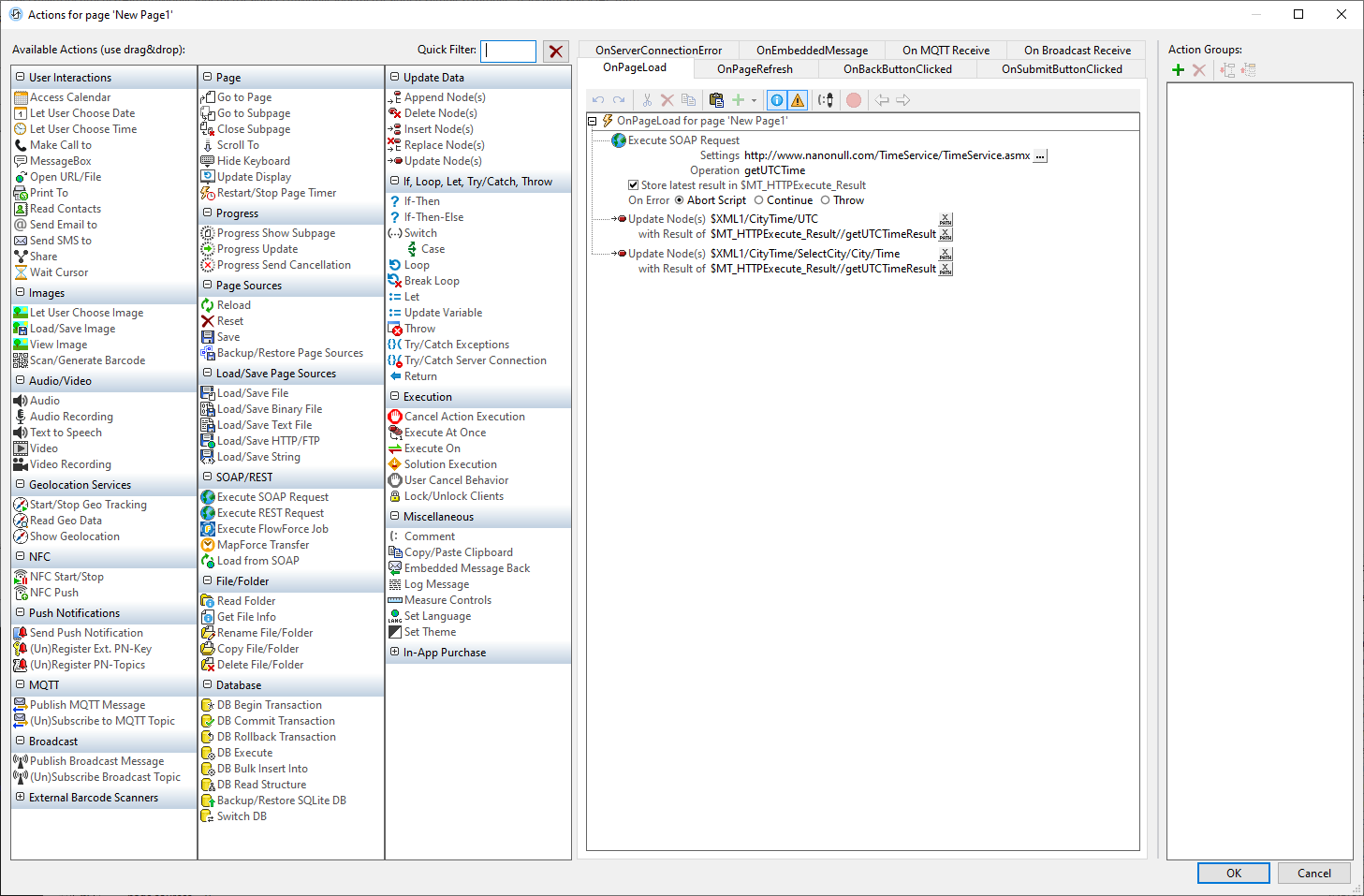

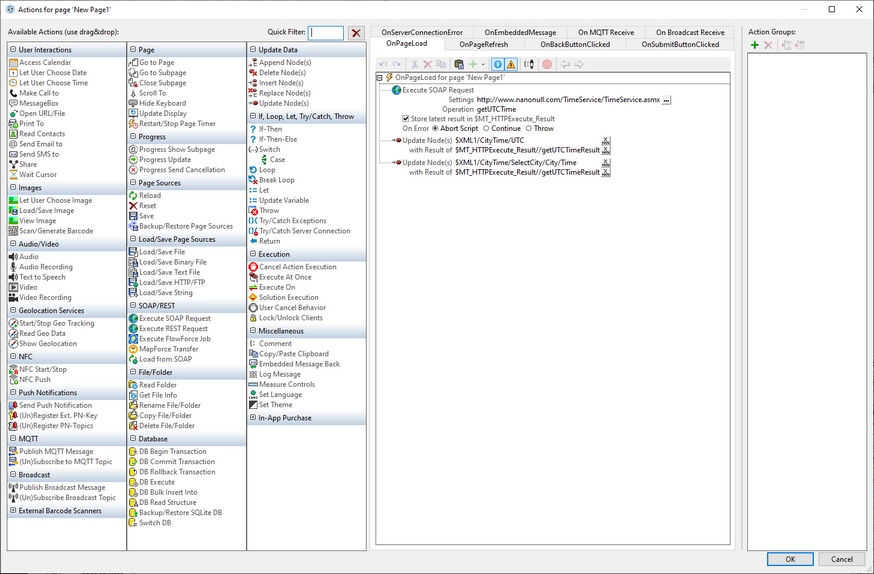

Displays the Actions dialog of the currently active page (see screenshot below). The left-hand pane of the dialog contains the available actions, organized by functionality. The right-hand pane contains tabs of available events for that page. The events that are available depend on the role of that page in the project workflow. For instance, a page that cannot be returned to by pressing the Back button will not have the OnBackButtonClicked event tab.

Click to expand/collapse

To specify that a particular action (from among the available actions) is carried out when an available event occurs, drag the action from the left-hand pane into the event's tab in the right-hand pane. Specify additional properties of the action as required. (For more information about individual page actions, see the section, Page Actions.) Note that you can also add any Action Group that might be defined for the project. Click OK to finish.
