The commands required to edit CALS/HTML tables are available as icons in the toolbar, and are listed below. Note that no corresponding menu commands exist for these icons. For a full description of when and how CALS/HTML Tables are to be used, see CALS/HTML Tables.



Insert table

ic_tbl_insert_table        The "Insert Table" command inserts a CALS/HTML table at the current cursor position.



Delete table

ic_tbl_delete_tbl        The "Delete table" command deletes the currently active table.



Append row

ic_tbl_append_row_02        The "Append row" command appends a row to the end of the currently active table.



Append column

ic_tbl_append_col        The "Append column" command appends a column to the end of the currently active table.



Insert row

ic_tbl_insert_row_02        The "Insert row" command inserts a row above the current cursor position in the currently active table.



Insert column

ic_tbl_insert_col        The "Insert column" command inserts a column to the left of the current cursor position in the currently active table.



Join cell left

ic_tbl_join_left        The "Join cell left" command joins the current cell (current cursor position) with the cell to the left. The tags of both cells remain in the new cell, the column headers remain unchanged and are concatenated.



Join cell right

ic_tbl_join_right        The "Join cell right" command joins the current cell (current cursor position) with the cell to the right. The contents of both cells are concatenated in the new cell.



Join cell below

ic_tbl_join_down        The "Join cell below" command joins the current cell (current cursor position) with the cell below. The contents of both cells are concatenated in the new cell.



Join cell above

ic_tbl_join_up        The "Join cell above" command joins the current cell (current cursor position) with the cell above. The contents of both cells are concatenated in the new cell.



Split cell horizontally

ic_tbl_split_horiz        The "Split cell Horizontally" command creates a new cell to the right of the currently active cell. The size of both cells, is now the same as the original cell.



Split cell vertically

ic_tbl_split_vert        The "Split cell Vertically" command creates a new cell below the currently active cell.



Align top

ic_cell_align_top        This command aligns the cell contents to the top of the cell.



Center vertically

ic_cell_align_middle        This command centers the cell contents.



Align bottom

ic_cell_align_bottom        This command aligns the cell contents to the bottom of the cell.





Table properties

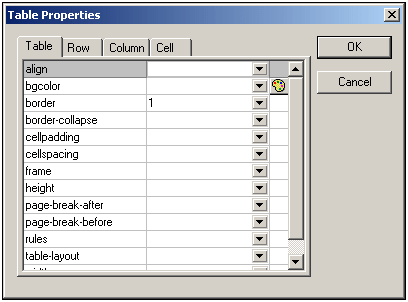

ic_tbl_properties        The "Table properties" command opens the Table Properties dialog box. This icon is only made active for HTML tables, it cannot be clicked for CALS tables.
dlg_table_props
