The Named Schema Relationships command allows the definition of named relationships to provide the information needed to create the document hierarchy. You have to have previously enabled the SQL Server schema extensions, using the menu option "Enable SQL Server Schema Extensions", to be able to access this menu option.



To create a named schema relationship:

1.Click the insert ic_schem_insor append icon ic_schem_app, to add a new row to the dialog box.
2.Click the field and enter the corresponding relationship name.
3.Click OK to confirm.

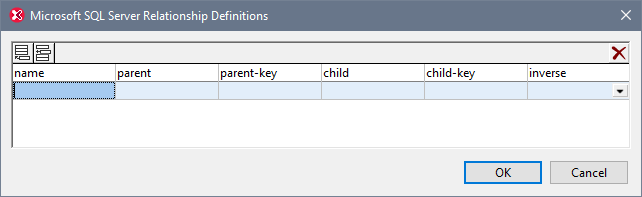

NamedSchemaRelationships

This generates a SQL relationship element, placing it just after the namespace declaration.



Note: Click the delete icon icDelete, to delete a row from the dialog box.
