Sending a SOAP Request from the WSDL File

Home Prev Top Next

To send a SOAP request from the timeservice.wsdl file, do the following:



1.Make timeservice.wsdl the active file in the Main Window.

2.Select the menu option SOAP | Create New SOAP request.

3.Browse for the file timeservice.wsdl and confirm with OK.

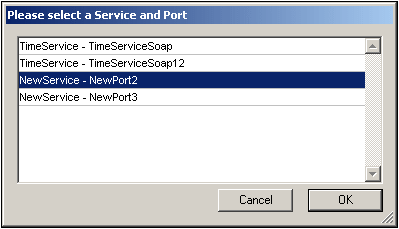

4.If, among the various services defined in the document, there is more than one port that references a SOAP 1.1 or 1.2 binding, then a popup appears (screenshot below) prompting you to select the required service and port. After making the selection, click OK.

SelectServiceNPort

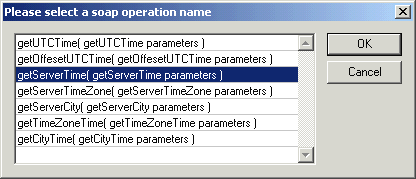

5.In the dialog box that then pops up (screenshot below), select a SOAP operation, for example, getServerTime, and click OK.

wsdl-tut-soap1

This creates a SOAP request document containing the getServerTime operation. You can save it if you like.

6.Make the request document the active document and select the menu option SOAP | Send request to server. The SOAP response document appears in the Main Window, containing the element getServerTimeResult, which displays the current server time of the Nanonull.com time service.
