Altova MapForce 2020 Enterprise Edition

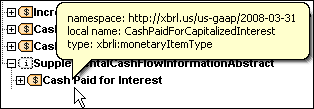

When tips are enabled, you can view additional information about each component item if you place the mouse cursor over it, as shown below.

xb-comp5

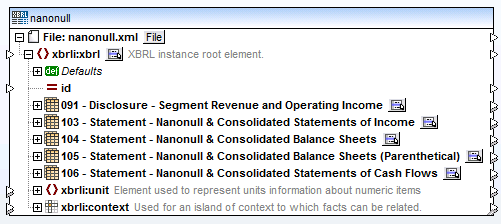

You can also switch on or off the annotation text (if it exists). When enabled, annotations are displayed to the right of the item inside the component. For example, in the screen shot below, the annotation of the xbrli:xbrl root element is "XBRL instance root element".

nofile_xbrl_nanonull_xsd

To enable or disable tips, do one of the following:



oOn the View menu, click Show Tips.

oClick the Show Tips ( ic-show-lib-info ) toolbar button.





To enable or disable annotations, do one of the following:



oOn the View menu, click Show Annotations.

oClick the Show Annotations ( ic-show-annot ) toolbar button.
