Changing the Order of Breakdowns

Home Prev Top Next

In XBRL documents that reference the table linkbase, you can change the order of breakdowns.

To change the order of breakdowns:

1.On the XBRL component, locate the node for which you want to change the breakdown order.

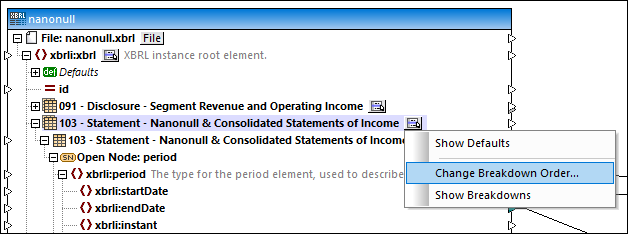

2.Click the Show Context Menu ( ic-dim-icon  ) button to the right of the node, and then click Change Breakdown Order. (If the Change Breakdown Order menu option is not available, this means that this option is not meaningful for the selected node.)

mf_xbrl_breakdowns_01

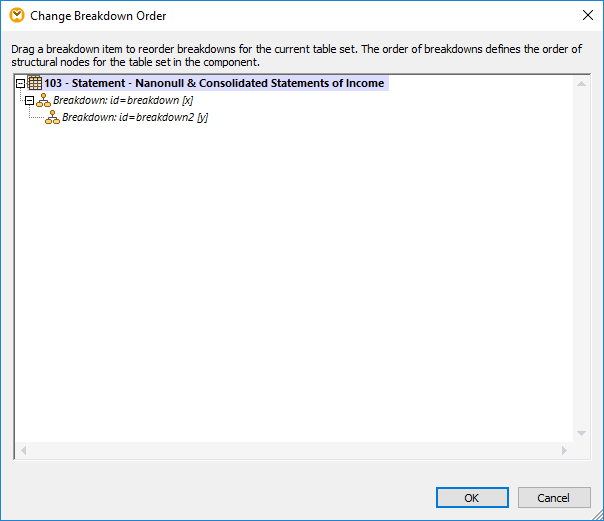

3.Drag the breakdowns to the desired location (for example, in the following screen shot, you can drag the y breakdown on top of the x breakdown).

mf_xbrl_breakdowns_02

4.Click OK.
