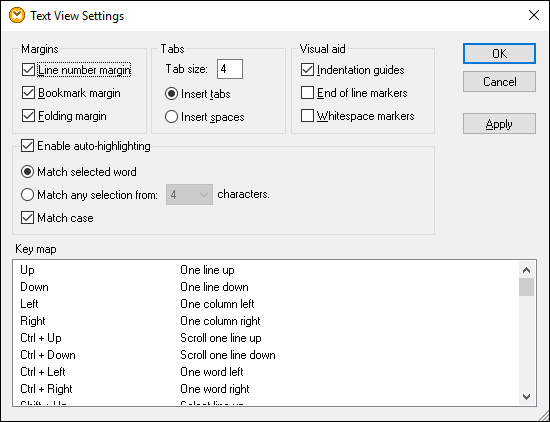

The Output pane, the XQuery pane, and the XSLT pane have multiple visual aids to make the display of text easier: e.g., margins, text highlighting, indentation guides, end-of-line and whitespace markers. You can customize these features in the Text View Settings dialog box (see screenshot below). The settings in this dialog box apply to the entire application.

MF_MapFund_GeneralFeat_TextView1

To open the Text View Settings dialog box, do one of the following:



Select Output | Text View Settings.

Click mf_ic_text_view_settings (Text View Settings) in the toolbar.

Right-click the blank area in the Output pane and select Text View Settings from the context menu.



Some of the navigation aids can also be toggled from the Text View toolbar, the application menu, or keyboard shortcuts. For more more information about shortcuts, see the Key map section of the Text View Settings dialog box shown above.



See the list of available settings below.
