You can define or change keyboard shortcuts in MapForce as follows: Select the Tools | Customize and click the Keyboard tab. To assign a new shortcut to a command, take the following steps:

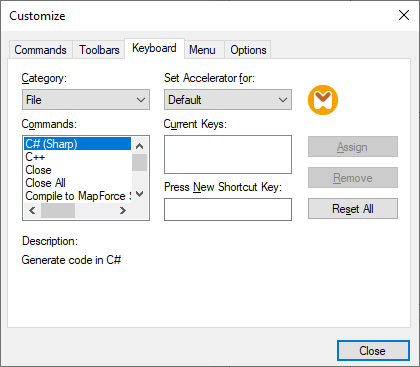

1.Select the Tools | Customize command and click the Keyboard tab (see screenshot below).

2.Click the Category combo box to select the menu name.

3.In the Commands list box, select the command you want to assign a new shortcut to.

4.Type in new shortcut keys in the Press New Shortcut Key text box and click Assign.

mf_shortcuts_customize

To clear the entry in the Press New Shortcut Key text box, press any of the control keys: Ctrl, Alt or Shift. To delete a shortcut, click the shortcut you want to delete in the Current Keys list box and click Remove.



Note:The Set accelerator for does not currently have any function.



Keyboard shortcuts

By default, MapForce provides the following keyboard shortcuts:




F1

Help Menu

F2

Next bookmark (in output window)

F3

Find Next

F10

Activate menu bar

Num +

Expand current item node

Num -

Collapse item node

Num *

Expand all from current item node



CTRL + TAB

Switches between open mappings

CTRL + F6

Cycle through open windows

CTRL + F4

Closes the active mapping document



Alt + F4

Closes MapForce

Alt + F, F, 1

Opens the last file

Alt + F, T, 1

Opens the last project



CTRL + N

File New

CTRL + O

File Open

CTRL + S

File Save

CTRL + P

File Print



CTRL + A

Select All

CTRL + X

Cut

CTRL + C

Copy

CTRL + V

Paste

CTRL + Z

Undo

CTRL + Y

Redo



Del

Delete component (with prompt)

Shift + Del

Delete component (no prompt)

CTRL + F

Find

F3

Find Next

Shift + F3

Find Previous



Arrow keys


(up / down)

Select next item of component

Esc

Abandon edits/close dialog box

Return

Confirms a selection



Output window hotkeys


CTRL + F2

Insert Remove/Bookmark

F2

Next Bookmark

SHIFT + F2

Previous Bookmark

CTRL + SHIFT + F2

Remove All Bookmarks



Zooming hotkeys


CTRL + mouse wheel forward

Zoom In

CTRL + mouse wheel back

Zoom Out

CTRL + 0 (Zero)

Reset Zoom
