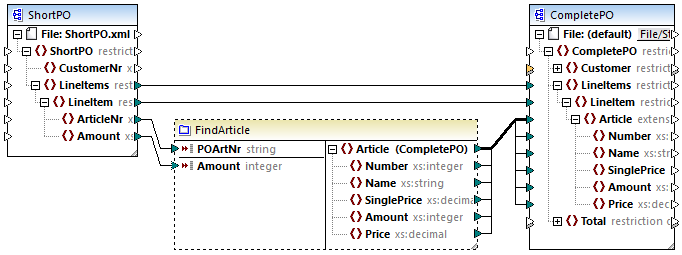

When you create a UDF, you must specify what input parameters it should take (if any) and what output it should return. While input parameters are sometimes not necessary, an output parameter is mandatory in all cases. Function parameters can be of simple type (e.g., string or integer) or a complex structure. For example, the FindArticle UDF illustrated below has two input and one output parameters:


POArtNr is an input parameter of type string.

Amount is an input parameter of type integer.

CompletePO is an output parameter that has a complex XML structure.


Parameter order

When a UDF has multiple input or output parameters, you can change the order in which parameters will appear to the callers of this function. The order of parameters in the function's mapping (starting from the top) dictates the order in which they appear to the callers of this function.




Input and output parameters are sorted by their position from top to bottom. Therefore, if you move the input3 parameter to the top in the function's mapping, it will become the first parameter of this function.

If two parameters have the same vertical position, the leftmost takes precedence.

In the unusual case that two parameters have exactly the same position, the internal component ID is automatically used.


Complex-type structures

The structures on which a parameter in a UDF can be based are summarized in the list below.


MapForce Basic Edition

XML Schema Structure

MapForce Professional Edition

XML Schema Structure

Database Structure

MapForce Enterprise Edition

XML Schema Structure

Database Structure

EDI Structure

FlexText Structure

JSON Schema Structure


UDFs based on database structures (Professional and Enterprise editions)

MapForce allows you to create DB-based UDF parameters with a tree of related tables. The tree of related tables represents an in-memory structure that has no connection to the database at runtime. This also means that there is no automatic handling of foreign keys and no table actions in parameters or variables.


Add Parameters

To add an input or output parameter, take the following steps:


1.Create a UDF or open an existing one.

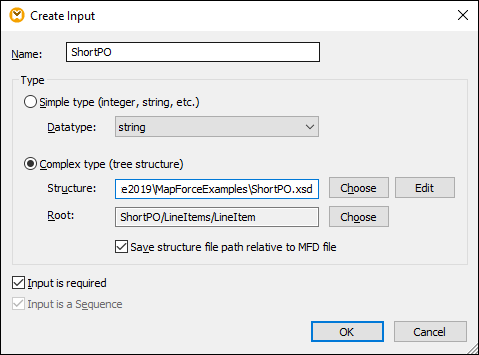

2.Run the menu command Function |  Insert Input or Function | Insert Output (see screenshot below). Alternatively, click mf_ic_udf_input (Insert Input) or mf_ic_udf_output (Insert Output) in the toolbar.


3.Choose whether input or output parameters should be of simple or complex type (see dialog box above). See the list of available complex structures above. For example, to create a parameter that is a complex XML type, click Choose next to Structure and browse for the XML schema that describes the required structure.


If the function's mapping already includes XML schemas, they become available for selection as structures. Otherwise, you can select a new schema that will provide the structure of the parameter. The same is true for databases and other complex structures if they are supported by your MapForce edition. With XML structures, it is possible to select the root element for your structure if the XML schema allows it. To specify the root element, click Choose next to Root and select the root item from the dialog box that opens.


If selected, the check box Save structure file path relative to MFD file will change the absolute path of the structure into a path relative to the current mapping, when you save the mapping. For more information, see Relative and Absolute Paths. The check boxes Input is required and Input is a Sequence are explained below.


Input is required

To make a parameter mandatory in a UDF, select the Input is required check box (see dialog box above). If you clear the Input is required check box, the parameter will become optional and have a dashed border in the mapping.


You can also specify a default parameter value by connecting it to the default input of a parameter (see example below). The default value will apply only if there is no other value. If the optional parameter receives a value when the function is called, that value takes precedence over the default.


Input is a sequence

You can optionally define whether a function's parameter should be treated as a single value (default option) or as a sequence. A sequence is a range of zero or more values. A sequence might be useful when your UDF expects input data as a sequence in order to calculate values in that sequence, for example, by calling functions such as avg, min, max. To treat the input of the parameter as a sequence, select the Input is sequence check box. Note that this check box is enabled only if the UDF is regular.

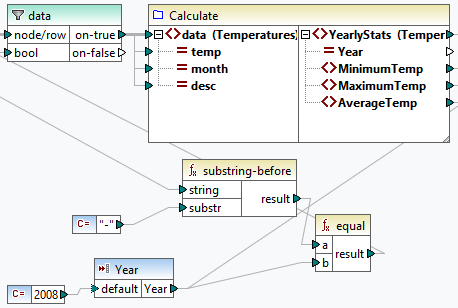

The usage of a sequence is illustrated in the following mapping: MapForceExamples\InputIsSequence.mfd. In the extract of this mapping (see screenshot below), the data filter is connected to the UDF called Calculate. The filter's output is a sequence of items. Therefore, the input parameter of the function is set to be a sequence.

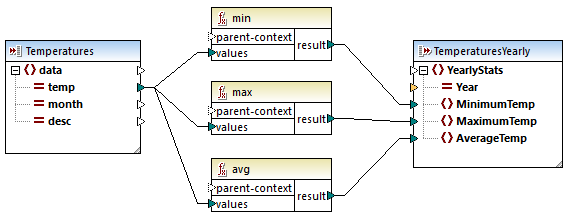

Illustrated below is the implementation of the Calculate function that aggregates all the sequence values: It runs the avg, min, and max functions on the input sequence. To see the internal structure of the Calculate function, double-click the header of the Calculate component in the mapping above.


As a rule of thumb, the input data (sequence or non-sequence) determines how often the function is called:


When input data is connected to a sequence parameter, the UDF is called only once, and the complete sequence is passed into the UDF.

When input data is connected to a non-sequence parameter, the UDF is called once for each single item in the sequence.

If you connect an empty sequence to a non-sequence parameter, the function is not called at all. This can happen if the source structure has optional items or when a filter condition returns no matching items. To avoid this, use the substitute-missing function before the function input to ensure that the sequence is never empty. Alternatively, set the parameter to a sequence and add handling for the empty sequence inside the function.


The Output is a Sequence check box may be required for output parameters, too. When a function passes a sequence of multiple values to its output component, and the output component is not set to sequence, the function will return only the first item in the sequence.
