Altova UModel 2020 Professional Edition

Interface IUMLStructuredClassifier

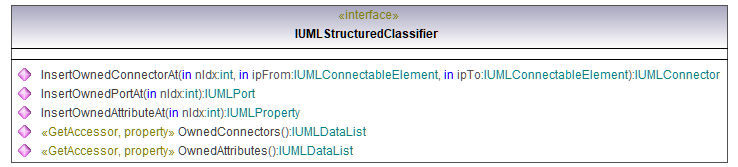

diagram
UModelAPI_diagrams/UModelAPI_p550.png

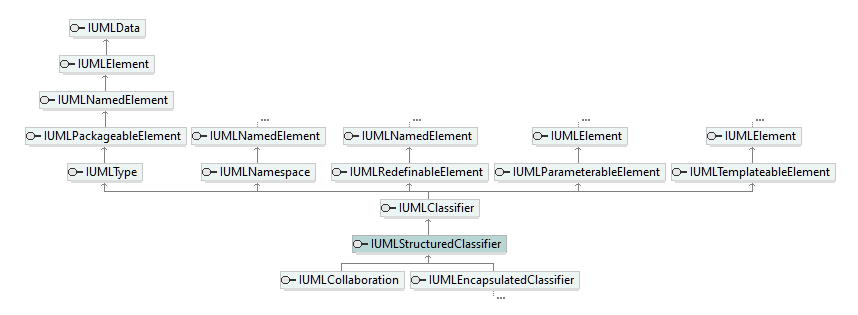

hierarchy
UModelAPI_diagrams/UModelAPI_p551.png



Operation IUMLStructuredClassifier::InsertOwnedAttributeAt

parameter

name

direction

type

type modifier

multiplicity

default

nIdx

in

int







return

return

IUMLProperty









Operation IUMLStructuredClassifier::InsertOwnedConnectorAt

parameter

name

direction

type

type modifier

multiplicity

default

nIdx

in

int







ipFrom

in

IUMLConnectableElement







ipTo

in

IUMLConnectableElement







return

return

IUMLConnector









Operation IUMLStructuredClassifier::InsertOwnedPortAt

parameter

name

direction

type

type modifier

multiplicity

default

nIdx

in

int







return

return

IUMLPort









Operation IUMLStructuredClassifier::OwnedAttributes

parameter

name

direction

type

type modifier

multiplicity

default

return

return

IUMLDataList







documentation

A list of elements of type IUMLProperty.



Operation IUMLStructuredClassifier::OwnedConnectors

parameter

name

direction

type

type modifier

multiplicity

default

return

return

IUMLDataList







documentation

A list of elements of type IUMLConnector.







UML documentation generated by UModel UML Editor http://www.altova.com/umodel

Wed Sep 11 08:48:25 2019

© 2019 Altova GmbH
