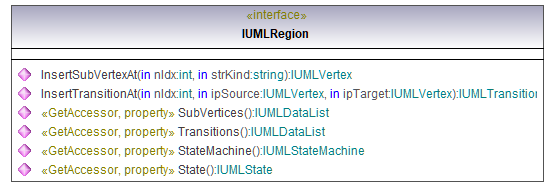

Interface IUMLRegion

diagram

UModelAPI_diagrams/UModelAPI_p527.png

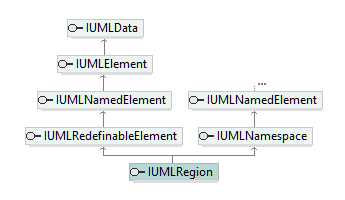

hierarchy

UModelAPI_diagrams/UModelAPI_p528.png

typedElements

Interface IUMLDataAll

Operation

Container InsertRegionAt

Interface IUMLState

Operation

InsertRegionAt

Interface IUMLStateMachine

Operation

InsertRegionAt

Interface IUMLVertex

Operation

Container



Operation IUMLRegion::InsertSubVertexAt

parameter

name

direction

type

type modifier

multiplicity

default

nIdx

in

int







strKind

in

string







return

return

IUMLVertex









Operation IUMLRegion::InsertTransitionAt

parameter

name

direction

type

type modifier

multiplicity

default

nIdx

in

int







ipSource

in

IUMLVertex







ipTarget

in

IUMLVertex







return

return

IUMLTransition









Operation IUMLRegion::State

parameter

name

direction

type

type modifier

multiplicity

default

return

return

IUMLState









Operation IUMLRegion::StateMachine

parameter

name

direction

type

type modifier

multiplicity

default

return

return

IUMLStateMachine









Operation IUMLRegion::SubVertices

parameter

name

direction

type

type modifier

multiplicity

default

return

return

IUMLDataList







documentation

A list of elements of type IUMLVertex.



Operation IUMLRegion::Transitions

parameter

name

direction

type

type modifier

multiplicity

default

return

return

IUMLDataList







documentation

A list of elements of type IUMLTransition.
