Altova UModel 2024 Professional Edition

Interface IUMLGuiNote

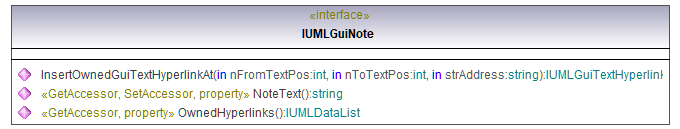

diagram

UModelAPI_diagrams/UModelAPI_p321.png

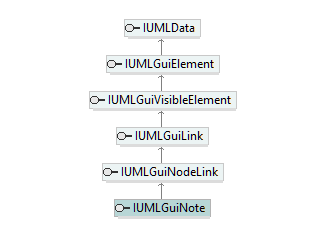

hierarchy

UModelAPI_diagrams/UModelAPI_p322.png

typedElements

documentation

A IUMLGuiNote is the graphical object resembling a note on UModel diagrams displaying a text comment.

It provides access to the note text and a list of hyperlinks in this text. These hyperlinks are nothing more than a list of URLs together with an begin and end number referencing positions in the text. Any text between a such a begin and end position is displayed as hyperlink and triggers UModel to open the URL when clicked.



Operation IUMLGuiNote::InsertOwnedGuiTextHyperlinkAt

parameter

name

direction

type

type modifier

multiplicity

default

nFromTextPos

in

int







nToTextPos

in

int







strAddress

in

string







return

return

IUMLGuiTextHyperlink









Operation IUMLGuiNote::NoteText

parameter

name

direction

type

type modifier

multiplicity

default

return

return

string









Operation IUMLGuiNote::OwnedHyperlinks

parameter

name

direction

type

type modifier

multiplicity

default

return

return

IUMLDataList
