Altova UModel 2020 Professional Edition

Interface IUMLGuiWaypoint

diagram

UModelAPI_diagrams/UModelAPI_p386.png

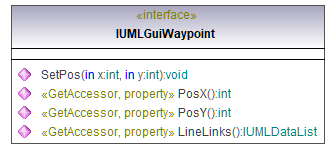

hierarchy

UModelAPI_diagrams/UModelAPI_p387.png

typedElements

Interface IUMLDataAll

Operation

InsertWaypointAt

Interface IUMLGuiLineLink

Operation

InsertWaypointAt

documentation

A IUMLGuiWaypoint is a part of a IUMLGuiLineLink which defines the position of one point of a line. There are several subtypes of this interface which for example make it possible to attach text labels or lines to a waypoint or line.



Operation IUMLGuiWaypoint::LineLinks

parameter

name

direction

type

type modifier

multiplicity

default

return

return

IUMLDataList









Operation IUMLGuiWaypoint::PosX

parameter

name

direction

type

type modifier

multiplicity

default

return

return

int









Operation IUMLGuiWaypoint::PosY

parameter

name

direction

type

type modifier

multiplicity

default

return

return

int









Operation IUMLGuiWaypoint::SetPos

parameter

name

direction

type

type modifier

multiplicity

default

x

in

int







y

in

int







return

return

void
