Altova UModel 2020 Professional Edition

Interface IUMLConstraint

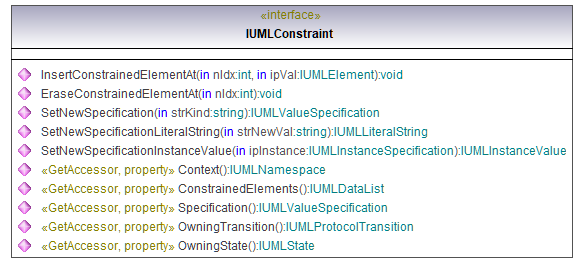

diagram

UModelAPI_diagrams/UModelAPI_p181.png

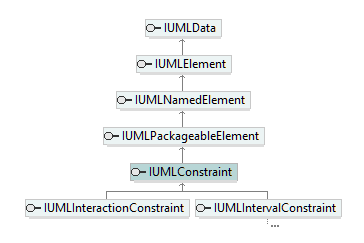

hierarchy

UModelAPI_diagrams/UModelAPI_p182.png

typedElements

Interface IUMLAction

Operation

InsertLocalPostConditionAt InsertLocalPreConditionAt

Interface IUMLBehavior

Operation

InsertPostconditionAt InsertPreconditionAt

Interface IUMLDataAll

Operation

InsertLocalPostConditionAt InsertLocalPreConditionAt InsertOwnedRuleAt InsertPostconditionAt InsertPreconditionAt Invariant OwningConstraint PostCondition PreCondition SetNewInvariant SetNewPostCondition SetNewPreCondition SetNewStateInvariant SetNewTransitionGuard StateInvariant TransitionGuard

Interface IUMLNamespace

Operation

InsertOwnedRuleAt

Interface IUMLProtocolTransition

Operation

PostCondition PreCondition SetNewPostCondition SetNewPreCondition

Interface IUMLState

Operation

SetNewStateInvariant StateInvariant

Interface IUMLStateInvariant

Operation

Invariant SetNewInvariant

Interface IUMLTransition

Operation

SetNewTransitionGuard TransitionGuard

Interface IUMLValueSpecification

Operation

OwningConstraint



Operation IUMLConstraint::ConstrainedElements

parameter

name

direction

type

type modifier

multiplicity

default

return

return

IUMLDataList







documentation

A list of elements of type IUMLElement.



Operation IUMLConstraint::Context

parameter

name

direction

type

type modifier

multiplicity

default

return

return

IUMLNamespace









Operation IUMLConstraint::EraseConstrainedElementAt

parameter

name

direction

type

type modifier

multiplicity

default

nIdx

in

int







return

return

void









Operation IUMLConstraint::InsertConstrainedElementAt

parameter

name

direction

type

type modifier

multiplicity

default

nIdx

in

int







ipVal

in

IUMLElement







return

return

void









Operation IUMLConstraint::OwningState

parameter

name

direction

type

type modifier

multiplicity

default

return

return

IUMLState









Operation IUMLConstraint::OwningTransition

parameter

name

direction

type

type modifier

multiplicity

default

return

return

IUMLProtocolTransition









Operation IUMLConstraint::SetNewSpecification

parameter

name

direction

type

type modifier

multiplicity

default

strKind

in

string







return

return

IUMLValueSpecification









Operation IUMLConstraint::SetNewSpecificationInstanceValue

parameter

name

direction

type

type modifier

multiplicity

default

ipInstance

in

IUMLInstanceSpecification







return

return

IUMLInstanceValue









Operation IUMLConstraint::SetNewSpecificationLiteralString

parameter

name

direction

type

type modifier

multiplicity

default

strNewVal

in

string







return

return

IUMLLiteralString









Operation IUMLConstraint::Specification

parameter

name

direction

type

type modifier

multiplicity

default

return

return

IUMLValueSpecification
