Altova UModel 2020 Professional Edition

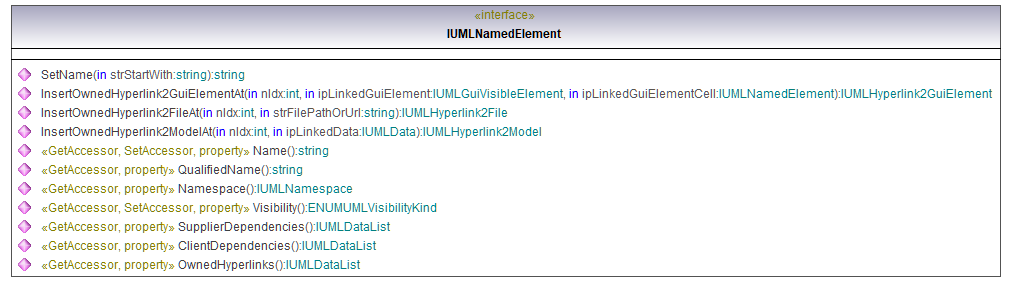

Interface IUMLNamedElement



Operation IUMLNamedElement::ClientDependencies

parameter

name

direction

type

type modifier

multiplicity

default

return

return

IUMLDataList







documentation

A list of elements of type IUMLDependency.



Operation IUMLNamedElement::InsertOwnedHyperlink2FileAt

parameter

name

direction

type

type modifier

multiplicity

default

nIdx

in

int







strFilePathOrUrl

in

string







return

return

IUMLHyperlink2File









Operation IUMLNamedElement::InsertOwnedHyperlink2GuiElementAt

parameter

name

direction

type

type modifier

multiplicity

default

nIdx

in

int







ipLinkedGuiElement

in

IUMLGuiVisibleElement







ipLinkedGuiElementCell

in

IUMLNamedElement







return

return

IUMLHyperlink2GuiElement









Operation IUMLNamedElement::InsertOwnedHyperlink2ModelAt

parameter

name

direction

type

type modifier

multiplicity

default

nIdx

in

int







ipLinkedData

in

IUMLData







return

return

IUMLHyperlink2Model









Operation IUMLNamedElement::Name

parameter

name

direction

type

type modifier

multiplicity

default

return

return

string









Operation IUMLNamedElement::Namespace

parameter

name

direction

type

type modifier

multiplicity

default

return

return

IUMLNamespace









Operation IUMLNamedElement::OwnedHyperlinks

parameter

name

direction

type

type modifier

multiplicity

default

return

return

IUMLDataList







documentation

A list of elements of type IUMLHyperlink.



Operation IUMLNamedElement::QualifiedName

parameter

name

direction

type

type modifier

multiplicity

default

return

return

string









Operation IUMLNamedElement::SetName

parameter

name

direction

type

type modifier

multiplicity

default

strStartWith

in

string







return

return

string







documentation

This function will find and set a unique name (starting with 'strStartWith') that the element is distinguishable in its parent namespace.



Operation IUMLNamedElement::SupplierDependencies

parameter

name

direction

type

type modifier

multiplicity

default

return

return

IUMLDataList







documentation

A list of elements of type IUMLDependency.



Operation IUMLNamedElement::Visibility

parameter

name

direction

type

type modifier

multiplicity

default

return

return

ENUMUMLVisibilityKind
