Interface IUMLGuiLineConnectionWaypoint

diagram

UModelAPI_diagrams/UModelAPI_p310.png

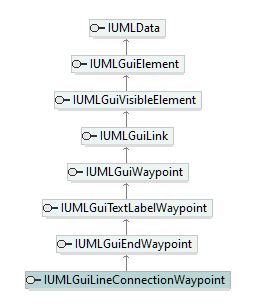

hierarchy

UModelAPI_diagrams/UModelAPI_p311.png

documentation

This special waypoint marks the part of a line where it is connected to another line. For example, when drawing a noteLink from a note to a line on a diagram in UModel, a waypoint of this type is created where the noteLink connects to the target line.

Using the DistanceFromLineBegin property, the waypoint sets a floating fixed position for itself on the line.



Operation IUMLGuiLineConnectionWaypoint::DistanceFromLineBegin

parameter

name

direction

type

type modifier

multiplicity

default

return

return

int
