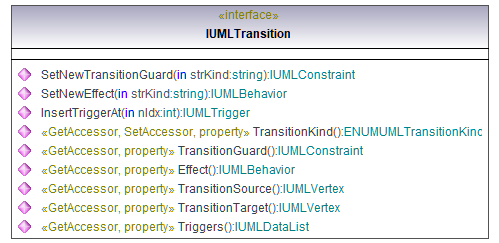

Interface IUMLTransition

diagram

UModelAPI_diagrams/UModelAPI_p572.png

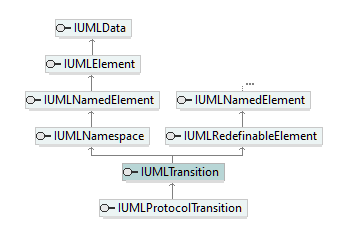

hierarchy

UModelAPI_diagrams/UModelAPI_p573.png

typedElements

Interface IUMLDataAll

Operation

InsertTransitionAt

Interface IUMLRegion

Operation

InsertTransitionAt



Operation IUMLTransition::Effect

parameter

name

direction

type

type modifier

multiplicity

default

return

return

IUMLBehavior









Operation IUMLTransition::InsertTriggerAt

parameter

name

direction

type

type modifier

multiplicity

default

nIdx

in

int







return

return

IUMLTrigger









Operation IUMLTransition::SetNewEffect

parameter

name

direction

type

type modifier

multiplicity

default

strKind

in

string







return

return

IUMLBehavior









Operation IUMLTransition::SetNewTransitionGuard

parameter

name

direction

type

type modifier

multiplicity

default

strKind

in

string







return

return

IUMLConstraint









Operation IUMLTransition::TransitionGuard

parameter

name

direction

type

type modifier

multiplicity

default

return

return

IUMLConstraint









Operation IUMLTransition::TransitionKind

parameter

name

direction

type

type modifier

multiplicity

default

return

return

ENUMUMLTransitionKind









Operation IUMLTransition::TransitionSource

parameter

name

direction

type

type modifier

multiplicity

default

return

return

IUMLVertex









Operation IUMLTransition::TransitionTarget

parameter

name

direction

type

type modifier

multiplicity

default

return

return

IUMLVertex









Operation IUMLTransition::Triggers

parameter

name

direction

type

type modifier

multiplicity

default

return

return

IUMLDataList







documentation

A list of elements of type IUMLTrigger.







UML documentation generated by UModel UML Editor http://www.altova.com/umodel
