UModelAPI - IUMLNamedElement

Scroll Home Prev Top Next More

Interface IUMLNamedElement

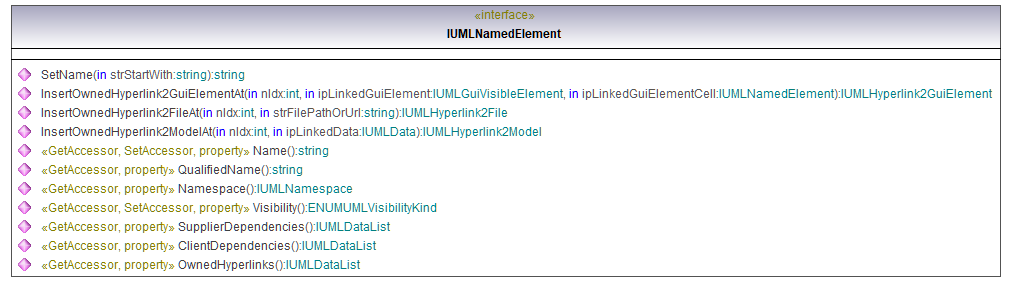

diagram

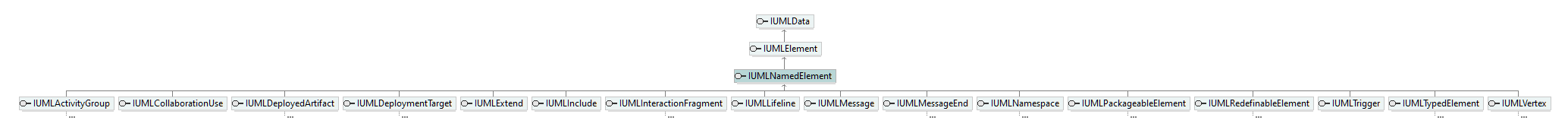

hierarchy

typedElements

Interface IUMLCommentTextHyperlink	Operation	SetHyperlinkGuiElementAddress
Interface IUMLDataAll	Operation	FindOwnedMemberWithQualifiedName InsertInformationSourceAt InsertInformationTargetAt InsertOwnedHyperlink2GuiElementAt LinkedGuiElementCell SetHyperlinkGuiElementAddress TimeObservationEvent
Interface IUMLGuiTextHyperlink	Operation	SetHyperlinkGuiElementAddress
Interface IUMLHyperlink2GuiElement	Operation	LinkedGuiElementCell
Interface IUMLInformationFlow	Operation	InsertInformationSourceAt InsertInformationTargetAt
Interface IUMLNamedElement	Operation	InsertOwnedHyperlink2GuiElementAt
Interface IUMLNamespace	Operation	FindOwnedMemberWithQualifiedName
Interface IUMLTimeObservation	Operation	TimeObservationEvent

Operation IUMLNamedElement::ClientDependencies

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLDependency.

Operation IUMLNamedElement::InsertOwnedHyperlink2FileAt

parameter

name	direction	type	type modifier	multiplicity	default
nIdx	in	int
strFilePathOrUrl	in	string
return	return	IUMLHyperlink2File

Operation IUMLNamedElement::InsertOwnedHyperlink2GuiElementAt

parameter

name	direction	type	type modifier	multiplicity	default
nIdx	in	int
ipLinkedGuiElement	in	IUMLGuiVisibleElement
ipLinkedGuiElementCell	in	IUMLNamedElement
return	return	IUMLHyperlink2GuiElement

Operation IUMLNamedElement::InsertOwnedHyperlink2ModelAt

parameter

name	direction	type	type modifier	multiplicity	default
nIdx	in	int
ipLinkedData	in	IUMLData
return	return	IUMLHyperlink2Model

Operation IUMLNamedElement::Name

parameter

name	direction	type	type modifier	multiplicity	default
return	return	string

Operation IUMLNamedElement::Namespace

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLNamespace

Operation IUMLNamedElement::OwnedHyperlinks

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLHyperlink.

Operation IUMLNamedElement::QualifiedName

parameter

name	direction	type	type modifier	multiplicity	default
return	return	string

Operation IUMLNamedElement::SetName

parameter

name	direction	type	type modifier	multiplicity	default
strStartWith	in	string
return	return	string

documentation

This function will find and set a unique name (starting with 'strStartWith') that the element is distinguishable in its parent namespace.

Operation IUMLNamedElement::SupplierDependencies

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLDataList

documentation

A list of elements of type IUMLDependency.

Operation IUMLNamedElement::Visibility

parameter

name	direction	type	type modifier	multiplicity	default
return	return	ENUMUMLVisibilityKind

UML documentation generated by UModel UML Editor http://www.altova.com/umodel

Wed Sep 11 08:48:25 2019
