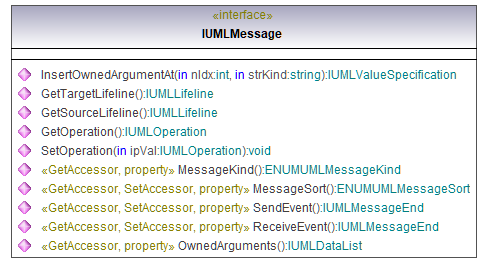

Interface IUMLMessage

diagram

UModelAPI_diagrams/UModelAPI_p453.png

hierarchy

UModelAPI_diagrams/UModelAPI_p454.png

typedElements

Interface IUMLDataAll

Operation

InsertMessageAt Message

Interface IUMLInteraction

Operation

InsertMessageAt

Interface IUMLMessageEnd

Operation

Message



Operation IUMLMessage::GetOperation

parameter

name

direction

type

type modifier

multiplicity

default

return

return

IUMLOperation









Operation IUMLMessage::GetSourceLifeline

parameter

name

direction

type

type modifier

multiplicity

default

return

return

IUMLLifeline









Operation IUMLMessage::GetTargetLifeline

parameter

name

direction

type

type modifier

multiplicity

default

return

return

IUMLLifeline









Operation IUMLMessage::InsertOwnedArgumentAt

parameter

name

direction

type

type modifier

multiplicity

default

nIdx

in

int







strKind

in

string







return

return

IUMLValueSpecification









Operation IUMLMessage::MessageKind

parameter

name

direction

type

type modifier

multiplicity

default

return

return

ENUMUMLMessageKind









Operation IUMLMessage::MessageSort

parameter

name

direction

type

type modifier

multiplicity

default

return

return

ENUMUMLMessageSort









Operation IUMLMessage::OwnedArguments

parameter

name

direction

type

type modifier

multiplicity

default

return

return

IUMLDataList







documentation

A list of elements of type IUMLValueSpecification.



Operation IUMLMessage::ReceiveEvent

parameter

name

direction

type

type modifier

multiplicity

default

return

return

IUMLMessageEnd









Operation IUMLMessage::SendEvent

parameter

name

direction

type

type modifier

multiplicity

default

return

return

IUMLMessageEnd









Operation IUMLMessage::SetOperation

parameter

name

direction

type

type modifier

multiplicity

default

ipVal

in

IUMLOperation







return

return

void
