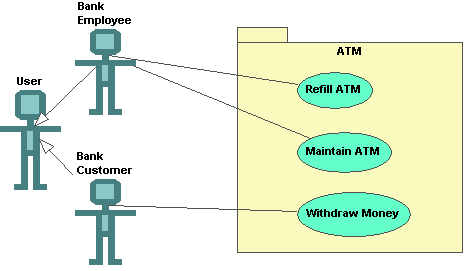

The SysML Use Case diagram displays elements and relations that describe services provided by a system. It also depicts various stakeholders (such as users or system operators) that consume services. In the Bank_SysML.ump example project from the C:\Users\<username>\Documents\Altova\UModel2022\UModelExamples directory, the following are examples of services:



A bank customer interacts with an ATM to withdraw cash

A bank employee performs ATM maintenance

A bank employee refills the ATM

sys-usecase1a

SysML Use Case diagram

The SysML Use Case diagram follows the UML specification, and designing it is not different compared to the standard Use Case diagram of the UML. For more information, see the Use Cases section in the tutorial.
