Interface IGenerateSequenceDiagramDlg

diagram

UModelAPI_diagrams/UModelAPI_p56.png

hierarchy

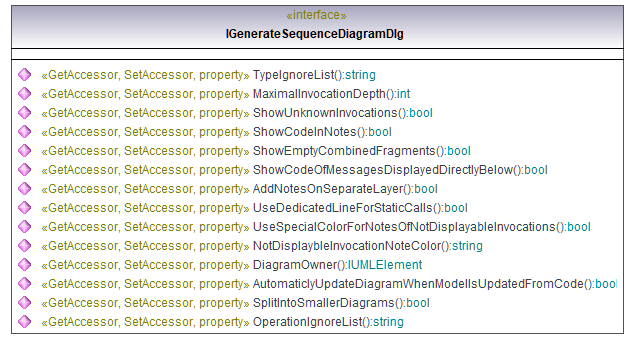

UModelAPI_diagrams/UModelAPI_p57.png

typedElements

Interface IDialogs

Operation

GenerateSequenceDiagramDlg

Interface IDocument

Operation

GenerateSequenceDiagram



Operation IGenerateSequenceDiagramDlg::AddNotesOnSeparateLayer

parameter

name

direction

type

type modifier

multiplicity

default

return

return

bool









Operation IGenerateSequenceDiagramDlg::AutomaticlyUpdateDiagramWhenModelIsUpdatedFromCode

parameter

name

direction

type

type modifier

multiplicity

default

return

return

bool









Operation IGenerateSequenceDiagramDlg::DiagramOwner

parameter

name

direction

type

type modifier

multiplicity

default

return

return

IUMLElement









Operation IGenerateSequenceDiagramDlg::MaximalInvocationDepth

parameter

name

direction

type

type modifier

multiplicity

default

return

return

int









Operation IGenerateSequenceDiagramDlg::NotDisplaybleInvocationNoteColor

parameter

name

direction

type

type modifier

multiplicity

default

return

return

string









Operation IGenerateSequenceDiagramDlg::OperationIgnoreList

parameter

name

direction

type

type modifier

multiplicity

default

return

return

string









Operation IGenerateSequenceDiagramDlg::ShowCodeInNotes

parameter

name

direction

type

type modifier

multiplicity

default

return

return

bool









Operation IGenerateSequenceDiagramDlg::ShowCodeOfMessagesDisplayedDirectlyBelow

parameter

name

direction

type

type modifier

multiplicity

default

return

return

bool









Operation IGenerateSequenceDiagramDlg::ShowEmptyCombinedFragments

parameter

name

direction

type

type modifier

multiplicity

default

return

return

bool









Operation IGenerateSequenceDiagramDlg::ShowUnknownInvocations

parameter

name

direction

type

type modifier

multiplicity

default

return

return

bool









Operation IGenerateSequenceDiagramDlg::SplitIntoSmallerDiagrams

parameter

name

direction

type

type modifier

multiplicity

default

return

return

bool









Operation IGenerateSequenceDiagramDlg::TypeIgnoreList

parameter

name

direction

type

type modifier

multiplicity

default

return

return

string









Operation IGenerateSequenceDiagramDlg::UseDedicatedLineForStaticCalls

parameter

name

direction

type

type modifier

multiplicity

default

return

return

bool









Operation IGenerateSequenceDiagramDlg::UseSpecialColorForNotesOfNotDisplayableInvocations

parameter

name

direction

type

type modifier

multiplicity

default

return

return

bool
