You can instruct UModel to generate package diagrams when importing source code or binaries into the UModel project (see Importing Source Code and Importing Java, C# and VB.NET Binaries). When following the import wizard, make sure that:



1) The Enable diagram generation check box is selected on the "Import Source Project", "Import Binary Types", or "Import Source Directory" dialog box.

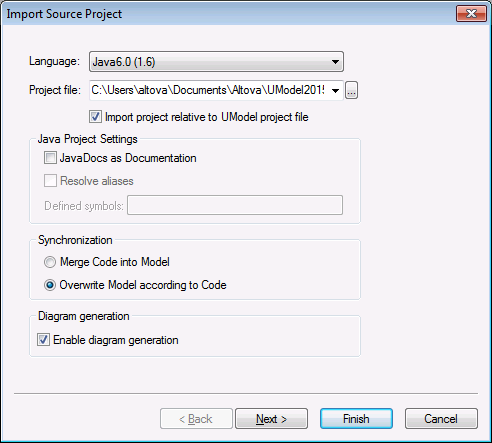

dlg_import_source_project

Import Source Project dialog box

2) The Generate diagram option is selected on the "Package Dependency Diagram Generation" dialog box.

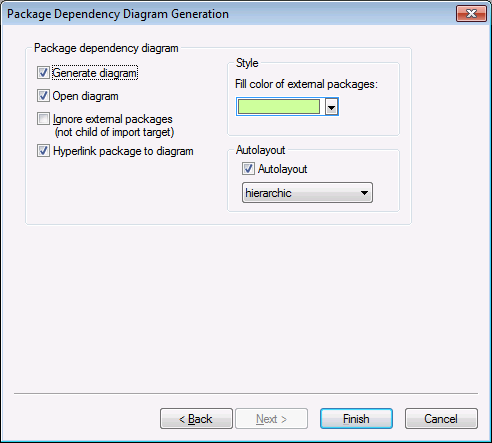

dlg_package_dependency_diagram_generation

Package Dependency Diagram Generation dialog box

Once the import operation is finished, any generated package diagrams are available under "Package Diagrams" in the Diagram Tree.

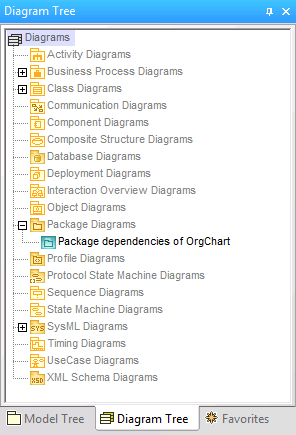

w_diagram_tree_package

Diagram Tree
