Interface IUMLGuiTimingDiagramMessage

diagram

UModelAPI_diagrams/UModelAPI_p380.png

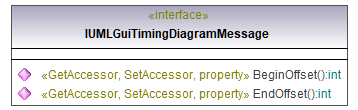

hierarchy

UModelAPI_diagrams/UModelAPI_p381.png

documentation

A IUMLGuiTimingDiagramMessage is a line usually connecting two IUMLGuiTimingDiagramLifelines. For each lifeline on one of its ends, it stores its position from the start of the state or general value compartement.



Operation IUMLGuiTimingDiagramMessage::BeginOffset

parameter

name

direction

type

type modifier

multiplicity

default

return

return

int









Operation IUMLGuiTimingDiagramMessage::EndOffset

parameter

name

direction

type

type modifier

multiplicity

default

return

return

int
