Interface IUMLGuiTextLabel

diagram

UModelAPI_diagrams/UModelAPI_p370.png

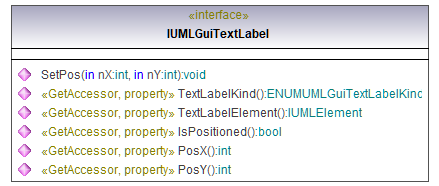

hierarchy

UModelAPI_diagrams/UModelAPI_p371.png

typedElements

documentation

A text label is an graphical object displaying additional data at the begin, end or at the center of a line. The IUMLGuiTextLabel interface provides access to this element. The text label can reference an UML Element using the TextLabelElement property and has a TextLabelKind which affects what text is shown in the text label.



Operation IUMLGuiTextLabel::IsPositioned

parameter

name

direction

type

type modifier

multiplicity

default

return

return

bool









Operation IUMLGuiTextLabel::PosX

parameter

name

direction

type

type modifier

multiplicity

default

return

return

int









Operation IUMLGuiTextLabel::PosY

parameter

name

direction

type

type modifier

multiplicity

default

return

return

int









Operation IUMLGuiTextLabel::SetPos

parameter

name

direction

type

type modifier

multiplicity

default

nX

in

int







nY

in

int







return

return

void









Operation IUMLGuiTextLabel::TextLabelElement

parameter

name

direction

type

type modifier

multiplicity

default

return

return

IUMLElement









Operation IUMLGuiTextLabel::TextLabelKind

parameter

name

direction

type

type modifier

multiplicity

default

return

return

ENUMUMLGuiTextLabelKind
