Altova UModel 2020 Professional Edition

Interface IUMLGuiTextLabelWaypoint

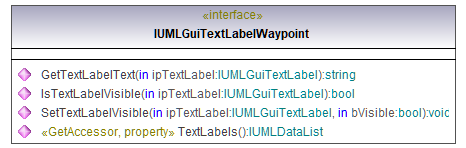

diagram

UModelAPI_diagrams/UModelAPI_p372.png

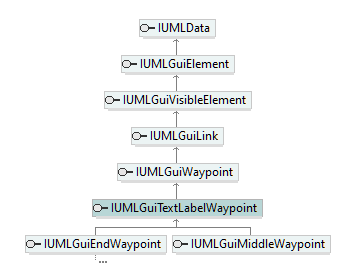

hierarchy

UModelAPI_diagrams/UModelAPI_p373.png

documentation

A text label waypoint is a special waypoint as part of a IUMLGuiLineLink which can have one or more text labels associated with it. Text label waypoints can usually appear at the begin, end or in the middle of a line. The waypoint stores not only the text labels it shows, but also the visibility of each text label.



Operation IUMLGuiTextLabelWaypoint::GetTextLabelText

parameter

name

direction

type

type modifier

multiplicity

default

ipTextLabel

in

IUMLGuiTextLabel







return

return

string









Operation IUMLGuiTextLabelWaypoint::IsTextLabelVisible

parameter

name

direction

type

type modifier

multiplicity

default

ipTextLabel

in

IUMLGuiTextLabel







return

return

bool









Operation IUMLGuiTextLabelWaypoint::SetTextLabelVisible

parameter

name

direction

type

type modifier

multiplicity

default

ipTextLabel

in

IUMLGuiTextLabel







bVisible

in

bool







return

return

void









Operation IUMLGuiTextLabelWaypoint::TextLabels

parameter

name

direction

type

type modifier

multiplicity

default

return

return

IUMLDataList







documentation

Returns a list of all text labels of this waypoint. Contains only elements of type (or subtype of) IUMLGuiTextLabel.
