Altova UModel 2020 Professional Edition

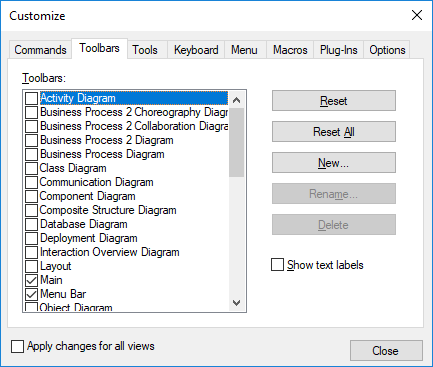

The Toolbars tab allows you to activate or deactivate specific toolbars, as well as create your own specialized ones.

um_tools_toolbars

Toolbars contain symbols for the most frequently used menu commands. For each symbol, you get a brief "tool tip" explanation when the mouse cursor is directly over the item and the status bar shows a more detailed description of the command. You can drag the toolbars from their standard position to any location on the screen, where they appear as a floating window. Alternatively, you can also dock them to the left or right edge of the main window.





To activate or deactivate a toolbar:

Click the check box to activate (or deactivate) the specific toolbar.





To create a new toolbar:

1.Click the New... button, and give the toolbar a name in the Toolbar name dialog box.

2.Add commands to the toolbar using the Commands tab of the Customize dialog box.





To reset the Menu Bar:

1.Click the Menu Bar entry, and

2.Click the Reset button, to reset the menu commands to the state they were when installed.





To reset all toolbar and menu commands:

1.Click the Reset All button, to reset all the toolbar commands to the state they were when the program was installed. A prompt appears stating that all toolbars and menus will be reset.

2.Click Yes to confirm the reset.



The Show text labels option places explanatory text below toolbar icons when activated.
