Interface IUMLProtocolTransition

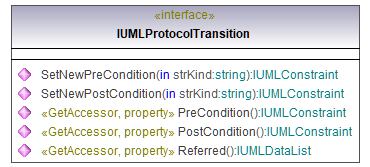

diagram

UModelAPI_diagrams/UModelAPI_p514.png

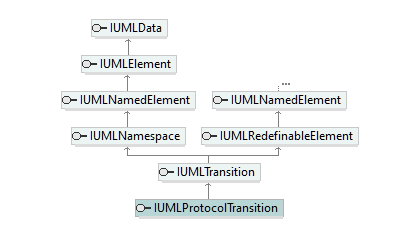

hierarchy

UModelAPI_diagrams/UModelAPI_p515.png

typedElements

Interface IUMLConstraint

Operation

OwningTransition

Interface IUMLDataAll

Operation

OwningTransition



Operation IUMLProtocolTransition::PostCondition

parameter

name

direction

type

type modifier

multiplicity

default

return

return

IUMLConstraint









Operation IUMLProtocolTransition::PreCondition

parameter

name

direction

type

type modifier

multiplicity

default

return

return

IUMLConstraint









Operation IUMLProtocolTransition::Referred

parameter

name

direction

type

type modifier

multiplicity

default

return

return

IUMLDataList









Operation IUMLProtocolTransition::SetNewPostCondition

parameter

name

direction

type

type modifier

multiplicity

default

strKind

in

string







return

return

IUMLConstraint









Operation IUMLProtocolTransition::SetNewPreCondition

parameter

name

direction

type

type modifier

multiplicity

default

strKind

in

string







return

return

IUMLConstraint
