As an alternative to designing class diagrams directly in UModel, you can generate them automatically when importing source code or binaries into UModel projects (see Importing Source Code  and Importing Java, C# and VB.NET Binaries). When following the import wizard, make sure that:



1) The Enable diagram generation check box is selected on the "Import Source Project", "Import Binary Types", or "Import Source Directory" dialog box.

dlg_import_source_project

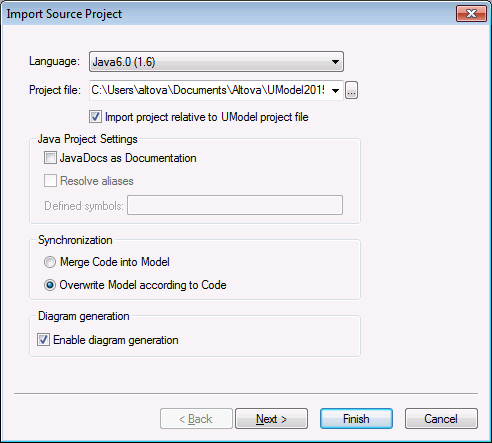

Import Source Project dialog box

2) The Generate single diagram and/or the Generate diagram per package options are selected on the "Content Diagram Generation" dialog box.

dlg_diagram_generation

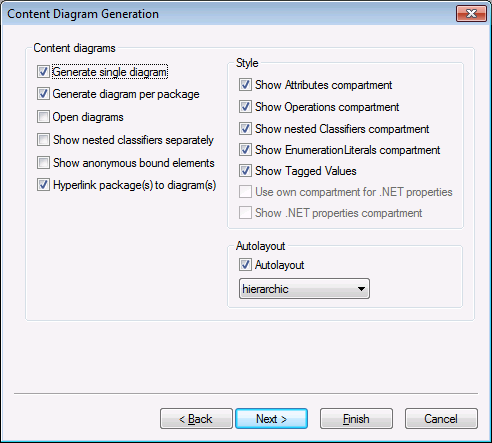

Content Diagram Generation dialog box

Once the import operation is finished, any generated class diagrams are available under "Class Diagrams" in the Diagram Tree.

w_diagram_tree_class_diagram

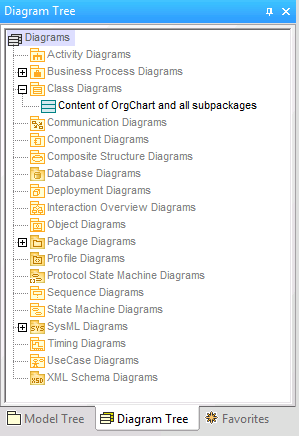

Diagram Tree
