UModel has various styles allowing you to adapt the diagram appearance  (i.e. font size, weight, color, visibility options,...).

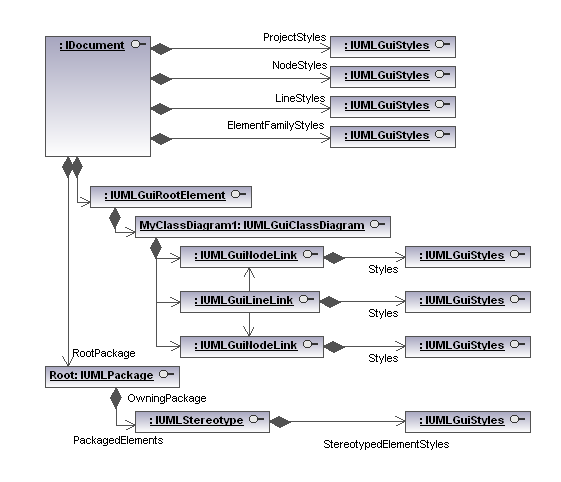

The following picture shows how the different styles (IUMLGuiStyles) can be accessed  using the UModel API:

Object model UMLData styles

The different styles can be identified by ENUMUMLGuiStyleKind.
