Interface IUMLStructuredActivityNode

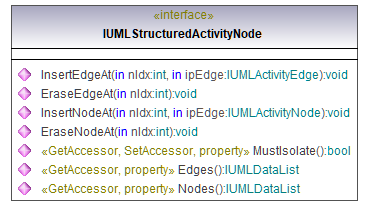

diagram

UModelAPI_diagrams/UModelAPI_p551.png

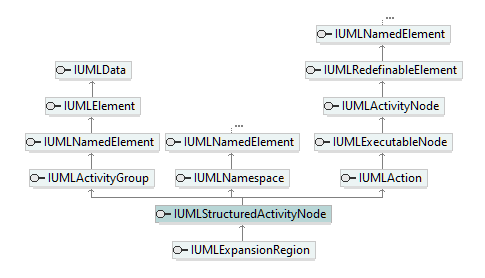

hierarchy

UModelAPI_diagrams/UModelAPI_p552.png



Operation IUMLStructuredActivityNode::Edges

parameter

name

direction

type

type modifier

multiplicity

default

return

return

IUMLDataList









Operation IUMLStructuredActivityNode::EraseEdgeAt

parameter

name

direction

type

type modifier

multiplicity

default

nIdx

in

int







return

return

void









Operation IUMLStructuredActivityNode::EraseNodeAt

parameter

name

direction

type

type modifier

multiplicity

default

nIdx

in

int







return

return

void









Operation IUMLStructuredActivityNode::InsertEdgeAt

parameter

name

direction

type

type modifier

multiplicity

default

nIdx

in

int







ipEdge

in

IUMLActivityEdge







return

return

void









Operation IUMLStructuredActivityNode::InsertNodeAt

parameter

name

direction

type

type modifier

multiplicity

default

nIdx

in

int







ipEdge

in

IUMLActivityNode







return

return

void









Operation IUMLStructuredActivityNode::MustIsolate

parameter

name

direction

type

type modifier

multiplicity

default

return

return

bool









Operation IUMLStructuredActivityNode::Nodes

parameter

name

direction

type

type modifier

multiplicity

default

return

return

IUMLDataList
