Altova website: _ic_link UML Composite Structure diagrams

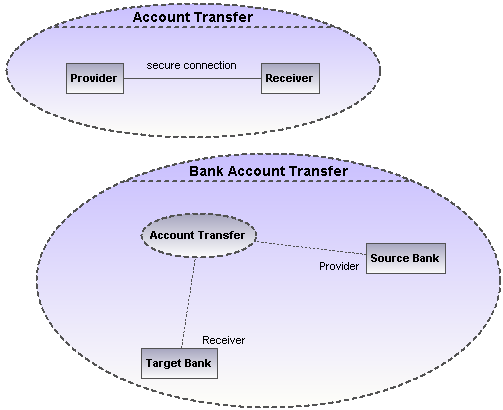

The Composite Structure Diagram has been added in UML 2.0 and is used to show the internal structure, including parts, ports and connectors, of a structured classifier, or collaboration.

comp-struct
