Altova UModel 2020 Professional Edition

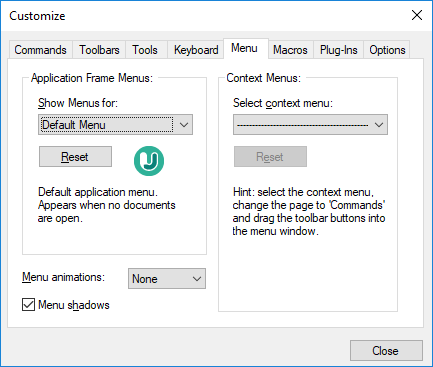

The Menu tab allows you to customize the main menu bars as well as the context menus.

um_tools_menu

To customize a menu:

1.Select UModel Project from the Show Menus for: combo box.

2.Click the Commands tab, and drag the commands to the menu bar of your choice.





To delete commands from a menu:

1.Right-click the command, or icon representing the command, and

2.Select Delete from the context menu,



or,



1.Select Tools | Customize to open the Customize dialog box, and

2.Drag the command away from the menu, and drop it as soon as the check mark icon appears below the mouse pointer.





To reset either of the menu bars:

1.Select either the Default or UModel Project entry in the combo box, and

2.Click the Reset button just below the menu name. A prompt appears asking if you are sure you want to reset the menu bar.





To customize any of the context menus ("right-click" menus):

1.Select the context menu from the "Select context menus" combo box.

2.Click the Commands tab, and drag the specific commands to context menu that is now open.





To delete commands from a context menu:

1.Right-click the command, or icon representing the command, and

2.Select Delete from the context menu



or,



1.Select Tools | Customize to open the Customize dialog box, and

2.Drag the command away from the context menu, and drop it as soon as the check mark icon appears below the mouse pointer.





To reset any of the context menus:

1.Select the context menu from the combo box, and

2.Click the Reset button just below the context menu name. A prompt appears asking if you are sure you want to reset the context menu.





To close a context menu window:

1.Click the Close icon at the top right of the title bar, or

2.Click the Close button of the Customize dialog box.



Select the Menu shadows check box, if you want all your menus to have shadows.
