UModel is able to create multiple sequence diagram models from multiple operations, as well as sequence diagrams from Getter / Setter properties.



Creating multiple sequence diagrams from multiple operations

1.Select the menu option Project | Generate Sequence diagrams.

seq-create1

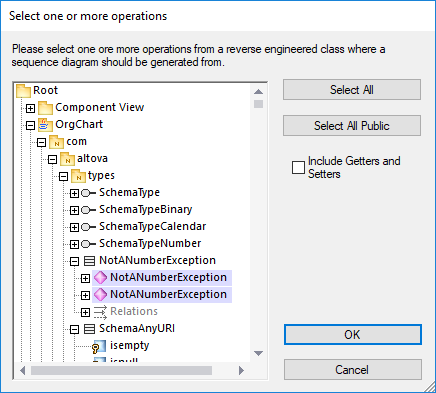

2.Select the operations that you want to generate a sequence diagram for and click OK. (Use the Select All Public and Select All buttons where necessary.) Clicking OK opens the Sequence Diagram Generation dialog box, in which you can further specify the sequence diagram generation options.
3.Click OK to generate the sequence diagrams. A sequence diagram is generated for each selected operation.



Note:You can now choose to include/exclude Getters and Setters, when generating the sequence diagram.



Creating a sequence diagram from getter/setter properties (C#, VB .NET)

1.Right click an Operation with a GetAccessor/SetAccessor stereotype.

seq-getSet

2.Select the option from the context menu that you want to create a sequence diagram from (Getter/Setter). This opens the Sequence Diagram Generation dialog box in which you can further specify the sequence diagram presentation settings.

seq-getSet2

3.Click OK to generate the Sequence Diagram.
