Altova UModel 2020 Professional Edition

Interface IUMLGuiTextHyperlink

diagram

UModelAPI_diagrams/UModelAPI_p368.png

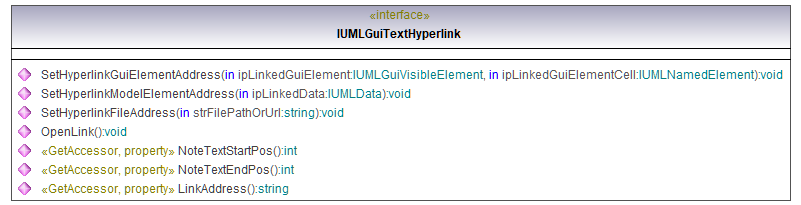

hierarchy

UModelAPI_diagrams/UModelAPI_p369.png

typedElements

documentation

Text Hyperlinks store an URL together with a begin and an end number referencing positions in some text. Any text between a such a begin and end position is displayed as hyperlink and triggers UModel to open the URL when clicked. This is used in IUMLGuiNote to create hyperlinks inside of the text comment for example.



Operation IUMLGuiTextHyperlink::LinkAddress

parameter

name

direction

type

type modifier

multiplicity

default

return

return

string









Operation IUMLGuiTextHyperlink::NoteTextEndPos

parameter

name

direction

type

type modifier

multiplicity

default

return

return

int









Operation IUMLGuiTextHyperlink::NoteTextStartPos

parameter

name

direction

type

type modifier

multiplicity

default

return

return

int









Operation IUMLGuiTextHyperlink::OpenLink

parameter

name

direction

type

type modifier

multiplicity

default

return

return

void









Operation IUMLGuiTextHyperlink::SetHyperlinkFileAddress

parameter

name

direction

type

type modifier

multiplicity

default

strFilePathOrUrl

in

string







return

return

void









Operation IUMLGuiTextHyperlink::SetHyperlinkGuiElementAddress

parameter

name

direction

type

type modifier

multiplicity

default

ipLinkedGuiElement

in

IUMLGuiVisibleElement







ipLinkedGuiElementCell

in

IUMLNamedElement







return

return

void









Operation IUMLGuiTextHyperlink::SetHyperlinkModelElementAddress

parameter

name

direction

type

type modifier

multiplicity

default

ipLinkedData

in

IUMLData







return

return

void
