Splits the input string into a sequence of strings using the delimiter supplied as argument.

mf-func-tokenize



Languages

Built-in, C++, C#, Java, XQuery, XSLT 2.0, XSLT 3.0.



Parameters

Name

Description

input

The input string.

delimiter

The delimiter to use.



Example

If the input string is A,B,C and the delimiter is ,  then the function returns a sequence of three strings: A, B, and C.



mf-func-tokenize-example



In the mock-up mapping illustrated above, the function's result is a sequence of strings. According to the general mapping rules, for each item in the source sequence, a new item is created in the target component. Consequently, the mapping output looks as follows:



<items>
  <item>A</item>
  <item>B</item>
  <item>C</item>
</items>





For a more elaborate example, see the tokenizeString1.mfd mapping available in the <Documents>\Altova\MapForce2022\MapForceExamples\ folder.

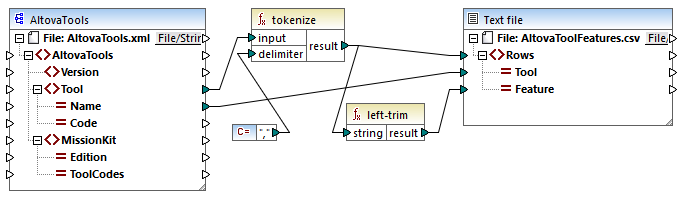

mf-func-tokenize-example2

tokenizeString1.mfd

A fragment from the source XML file is shown below. The Tool element has two attributes: Name and Code. The Tool element data consists of comma-delimited text.



<?xml version="1.0" encoding="UTF-8"?>
<AltovaTools xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="AltovaTools.xsd">
  <Version>2010</Version>
  <Tool Name="XMLSpy" Code="XS">XML editor, XSLT editor, XSLT debugger, XQuery editor, XQuery debugger, XML Schema / DTD editor, WSDL editor, SOAP debugger</Tool>
  <Tool Name="MapForce" Code="MF">Data integration, XML mapping, database mapping, text conversion, EDI translator, Excel mapping, XBRL mapping, Web services</Tool>
  <Tool Name="StyleVision" Code="SV">Stylesheet designer, electronic forms, XSLT design, XSL:FO design, database reporting, XBRL rendering</Tool>
  <Tool Name="UModel" Code="UM">UML modeling tool, code generation, reverse engineering, UML, BPMN, SysML, project documentation, XMI interchange</Tool>
  <Tool Name="DatabaseSpy" Code="DS">Multi-database tool, SQL auto-completion, graphical database design, table browser, content editor, database comparison tool</Tool>
  <!-- ... -->
</AltovaTools>



The mapping does the following:



The tokenize function receives data from the Tool source item and uses the comma , delimiter to split that data into separate chunks. The first chunk is "XML editor", the second one is "XSLT editor", and so on.

For each chuck resulting from the tokenize function, a new row is generated in the target. This happens thanks to the connection between the function's result and the Rows item in the target component.

The result of the tokenize function is also mapped to the left-trim function, which removes the leading white space of each chunk.

The result of the left-trim function (each chunk) is written to the Feature item of the target component.

The target component output file has been defined as a CSV file (AltovaToolFeatures.csv) with the field delimiter being a semicolon (double click component to see settings).



The result of the mapping is that, for each chunk created by the tokenize function, a new row is created in the target CSV file. A fragment of the mapping output looks as follows:



Tool;Feature

XMLSpy;XML editor

XMLSpy;XSLT editor

XMLSpy;XSLT debugger

XMLSpy;XQuery editor

XMLSpy;XQuery debugger

XMLSpy;XML Schema / DTD editor

XMLSpy;WSDL editor

XMLSpy;SOAP debugger

MapForce;Data integration

MapForce;XML mapping

MapForce;database mapping

MapForce;text conversion

MapForce;EDI translator

MapForce;Excel mapping
