Edit DB Filter, Clear DB Filter

Home Prev Top Next

The Edit DB Filter command ic_edit_db_filter allows you to create and edit a filter for a database table (a DB Filter). A DB Filter determines what data from the selected database table is imported and displayed. A DB Filter consists of one or more criteria. When you specify criteria, you use an expression, which is a combination of operators (= or >) and values (text or numbers). Additionally, criteria can be joined by the logical operators AND or OR.



To create or edit a DB Filter, do the following:



1.Select the top-level data table element for which you wish to create or edit a DB Filter. Do this by clicking either the element tag in Design View or the element name in the schema tree.

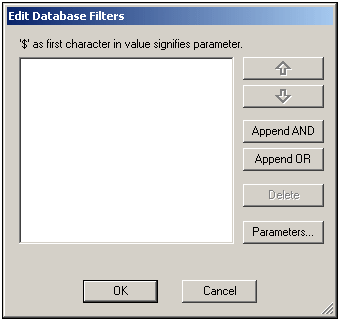

2.Select Database | Edit DB Filter or click the toolbar icon for the command. This pops up the Edit Database Filters dialog.



dlg_edit_db_filters



3.To add criteria use the Append AND and Append OR buttons. To move a criterion up or down, use the arrow buttons. To delete a criterion, use the Delete button.
4.Specify the criteria for the DB Filter. Each criterion consists of three parts: Field Name + Operator + Value. The options for Field Names and Operators are available in combo boxes. The value of the expression must be keyed in, and may be a parameter (indicated by a preceding \$ character).



Clear DB Filter command

The Clear DB Filter command ic_clear_db_filter deletes the filter after asking for and receiving a confirmation from you.
