Viewing the Updated Relationships

Scroll Home Prev Top Next More

You can now view the include and redefine relationships that you created between schemas in the course of this tutorial, for example:



1.In SchemaAgent Client, select the File | New menu command, or click the New ic_new toolbar button, or press Ctrl+N, to open a new Design window.

2.In the Explorer window, click the Hierarchical tab.

3.Drag the following files from the include_redefine folder into the Design window: event_registration.xsd, dvd_order.xsd, and book_order.xsd.

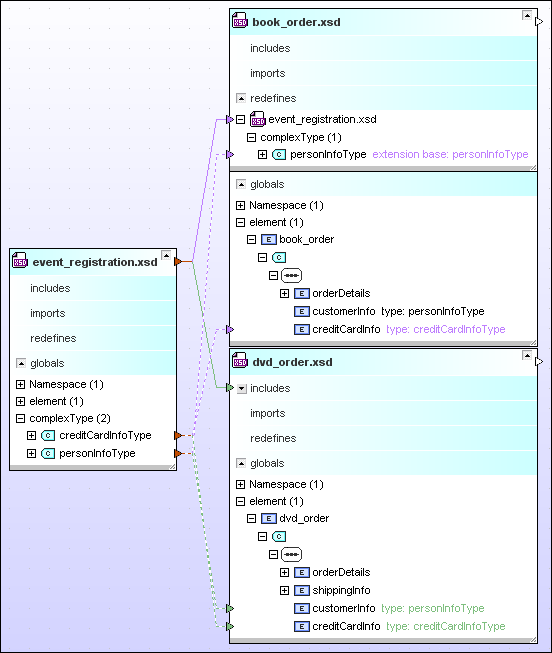

design_tutorial-completed

To view details about a specific section in each schema, click the expand ic_expand icon. To move a schema, click its title bar and drag the mouse to a new position. To resize the component, drag its lower-right corner sa_ic_bestfit, or right-click anywhere inside the component and select Size to fit from the context menu.



To display information about a specific file on the Design window, position the cursor over the title bar. A Quick Info box displays information about that file.
