Displaying Quick Information

When you move the mouse pointer over the title bar of a file or highlight a connector line in a Design window, SchemaAgent displays a Quick-Info box with details on file location, target namespace, IIR information etc. The type and amount of information displayed in a Quick-Info box depends on the object being under the focus of the mouse pointer.



A Quick-Info box is provided for the following objects:



Schema boxes
Schemas contained in the individual sections of other schema boxes
MFD file boxes
Schemas contained in the Input or Output section of MFD file boxes
XML instances
IIR connector lines
MapForce connector lines
Component relation connectors
References to XML instances



Schemas

When you move the mouse pointer over the title bar of a schema box, a Quick-Info box containing the following information is displayed:



Location of the schema
Target namespace
IIR information about the schema, for example, what schemas are included in that schema, and in which schemas that schema is included itself.



Note:The Quick-Info box displays IIR information as determined in the search path.



Quickinfo XML Schema <NanonullOrg.xsd>



C:\...\Altova\XMLSpy2019\Examples\NanonullOrg.xsd



Target namespace: http://www.xmlspy.com/schemas/orgchart

Prefix: <default namespace>



imports:        (2 entries)

 address.xsd

 TextState.xsd



referenced by:

 NanoNullOrg.xml



Placing the text cursor over an alert ic_alert icon, if visible in the schema box, opens the relevant error message in the Quick-Info box.



When you have expanded a schema box and move the mouse pointer over the file name of an included, imported, or redefined external schema, the Quick-Info box displays the following information on the external schema:



Location of the schema
Target namespace



MapForce design files

When you move the mouse pointer over the title bar of a MFD file box, a Quick-Info box containing the following information is displayed:



Location of the MFD file
source file(s)
target file



Quickinfo MapForce Design <CompletePO.mfd>



C:\...\Altova\MapForce2019\MapForceExamples\CompletePO.mfd



reading from:        (3 entries)

 ShortPO.xsd

 Articles.xsd

 Custormers.xsd



writing to:

 CompletePO.xsd



When you move the mouse pointer over the file name of a schema contained in the MFD file, the Quick-Info box displays the following information:



Location of the schema
Target namespace



XML instances

When you move the mouse pointer over the title bar of an XML instance file box, a Quick-Info box containing the following information is displayed:



Location of the XML file
referenced file(s)
files writing the XML instance
files reading the XML instance



Quickinfo XML Instance <input.xml>



C:\...\Altova\MapForce2019\MapForceExamples\Tutorial\input.xml



references:

 Input.xsd



written by:

 Summing-nodes.mfd



read by:

 Summing-nodes.mfd



XSLT stylesheets

When you move the mouse pointer over the title bar of an XSLT stylesheet box, a Quick-Info box containing the following information is displayed:



Location of the XSLT file
XSL Version
imported XSLT files
included XSLT files
imported XML schemas
Files containing the XSLT file
inline schemas contained in the XSLT file



Quickinfo XSL <ExpReport.xslt>



C:\...\Altova\XMLSpy2019\Examples\ExpReport.xslt

version = 2.0



imports:

 OrgChart.xsl



includes:

 OrgChartFO.xsl



imports:

 html-address.xsd



imported in:

 Master.xslt



contains:

 inline schema [0]



Web Service Description files

When you move the mouse pointer over the title bar of a WSDL file box, a Quick-Info box containing the following information is displayed:



Location of the WSDL file
WSDL version
Target namespace
imported WSDL files
imported XML schemas
files containing the WSDL file
files reading the WSDL file
inline schemas contained in the WSDL file



Quickinfo WSDL <WebService.wsdl>



C:\...\Altova\MapForce2019\UPSRates.wsdl



version = 1.1



Target namespace http://www.mackeybros.com/WebServices/

Prefix: tns



is written by:

 Complete POws.mfd



is read by:

 Complete POws.mfd



contains:

 inline schema [0]



Relations

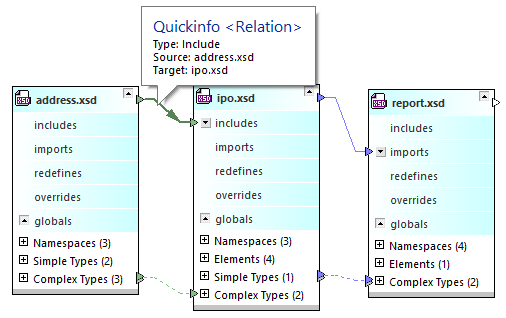

When connector lines between schemas, MFD files, XML instances, or components and their respective source or target item are highlighted, a Quick-Info box is displayed. The content of the Quick-Info box differs depending on the type of the highlighted connector.



The following is displayed for relations:



Type (Import, Include, Redefine, MapForce, or Reference)
Source
Target



Quickinfo <Relation>



Type: MapForce

Source: Custormers.xsd

Target: CompletePO.mfd



When you move the mouse pointer over a component relation, the Quick-Info box contains information regarding the input component the MapForce item reads from, or the MapForce item the output component is written by, respectively.



Quickinfo <Component Relation>



MapForce: ArticleNr (CompletePO.mfd) reads from ArticleNr (ShortPO.xsd)



Quickinfo <Component Relation>



MapForce: Customer (CompletePO.xsd) is written by Customer (CompletePO.mfd)



The Quick-Info box for a component nested in a schema box looks similar.



Quickinfo <Component Relation>



Import: Address (NanonullOrg.xsd) uses ipo: US-Address (address.xsd)
