WSDL Relationships

WSDL files can import other WSDL files or XML schemas. In addition, one or several inline schemas may be present in a WSDL file. SchemaAgent illustrates these relationships with different colors.

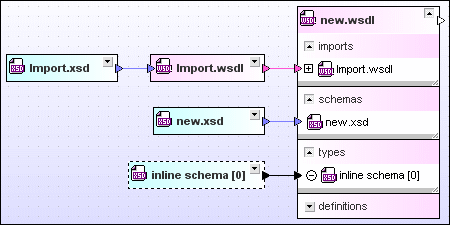

design_relations-WSDL

The connector lines lead from the title bar of an XML schema or WSDL box to the title bar of a WSDL box when the WSDL box is collapsed, or to the imports or schemas sections, respectively, within a WSDL box when the WSDL box is expanded. The default color for imports is magenta, for schema relations it is light blue.



Inline schemas are displayed when you expand the types section in a WSDL box. You can also show a file box for the inline schema. The file box for the inline schema has a dashed border, apart from that, you can proceed as with any other XML schema box.





To display a schema box for an inline schema:

1.Expand a WSDL box until the inline schemas are listed under the types section.
2.Right-click an inline schema and deactivate the Show inline option in the context menu or click the ic_show-inline-box icon to the left of the schema name. Alternatively, you can also double-click the inline schema entry in the types section. The inline schema is displayed in a separate schema box which is connected to the types section of the WSDL file box.





To hide a schema box for an inline schema:

Right-click an inline schema that has a schema box displayed in the WSDL box and activate the Show inline option in the context menu. Alternatively, click the ic_show-inline icon to the left of the schema name, or double-click the inline schema entry in the types section.
