Creating Files and Folders

When you create a new file or folder in the Explorer window, a rudimentary untitled and having the respective file extension, is created in the folder that currently has the focus in the Hierarchical tab and a corresponding entry is created in the Hierarchical tab.

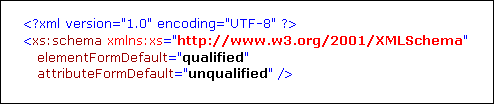

If you open a new schema in XMLSpy, it will look like this:

xsd_new-schema

A new XML file has the following content:

xml_new-xml

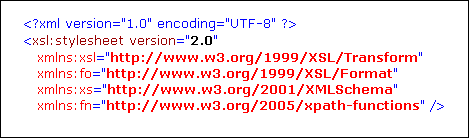

A new XSLT file will look like this:

xsl_new-xslt

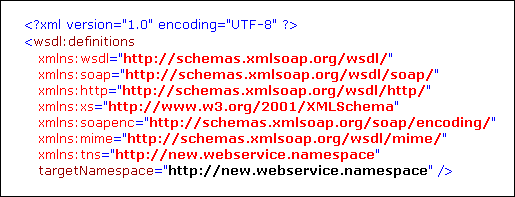

A file with the following content is created if you choose to add a new WSDL 1.1 file:

wsdl_new-wsdl

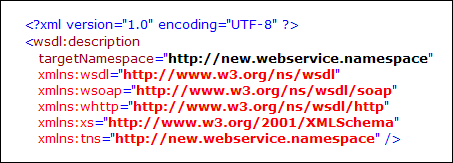

A file with the following content is created if you choose to add a new WSDL 2.0 file:

wsdl_new-20

When a new folder is created, an empty folder called new folder is physically created in the folder that currently has the focus in the Hierarchical tab and an entry for this folder is created in the Hierarchical tab.



Note:If you have deselected the Show Empty Folders option in the Explorer context menu, the new folder, because it contains no schemas, will not be displayed in the Hierarchical tab.





To create a new file or folder in the Explorer window:

1.In the Hierarchical tab, select the folder where you want to create the file or folder.
2.Do one of the following:



Right-click and select New | Schema file from the context menu, or press the Insert key to create a new schema.
Right-click and select New | XML file from the context menu to create a new XML file.
Right-click and select New | XSL file from the context menu to create a new XSLT file.
Right-click and select New | WSDL 1.1 file from the context menu to create a new WSDL 1.1 file.
Right-click and select New | WSDL 2.0 file from the context menu to create a new WSDL 2.0 file.
Right-click and select New | MapForce design from the context menu to create a new MFD file.
Right-click and select New | Folder from the context menu, or press Shift+Insert to create a new sub-folder.



3.Enter a descriptive name and press Enter.
