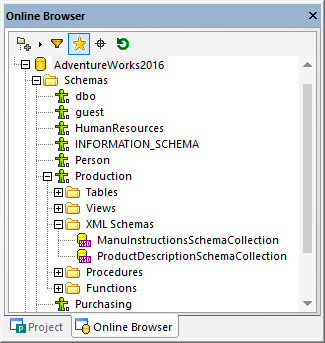

In the Online Browser, all XML schemas belonging to particular database schema are displayed in the "XML Schemas" folder.
If an XML schema has dependencies, the dependent schemas are displayed in a new "XML Schemas" folder nested under the parent schema.

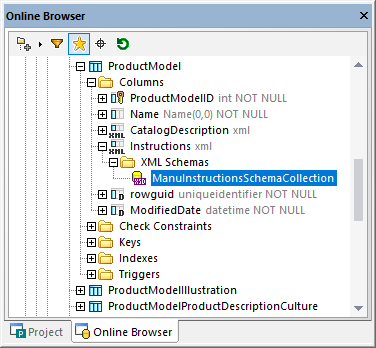

All the XML schemas assigned to an XML column are displayed in the Online Browser in an "XML Schemas" sub-folder below the respective column. This way, you can see at a glance which XML schemas are used to validate the content of a particular XML column in the database.

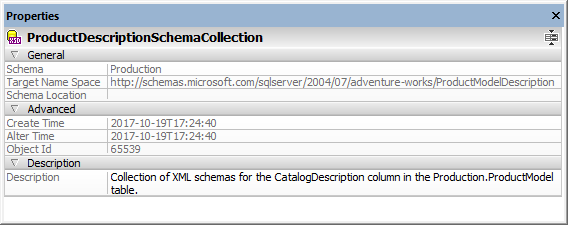

The properties of XML schemas can be viewed and—where possible—edited in the Properties window.
Editing a property (for example "Description") generates a script in the Database Structure Change Script Window. To update the database, click the Execute the Generated SQL Change Script button.
If Altova XMLSpy Editor (https://www.altova.com/xmlspy-xml-editor) is installed on your PC, you can open an XML schema in XMLSpy, as follows:
•In the Online Browser, right-click a schema from the "XML Schemas" folder and select View in XMLSpy from the context menu.
•In the Online Browser, right-click a schema and select Manage XML schemas from the context menu. In the dialog box that opens, select a schema and click the View Schema button.
