Interface IUMLState

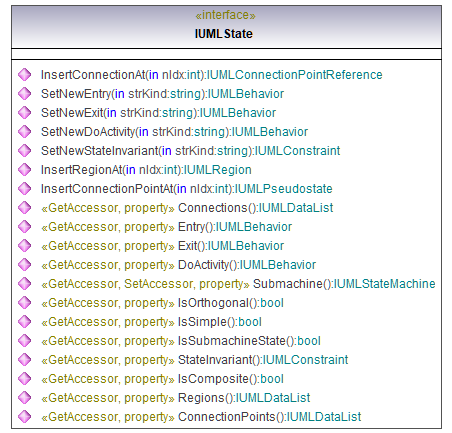

diagram

UModelAPI_diagrams/UModelAPI_p539.png

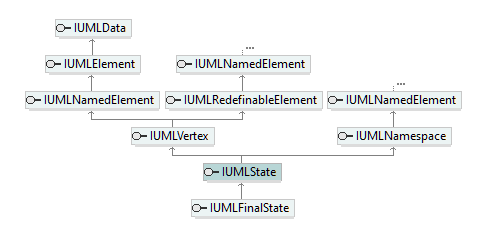

hierarchy

UModelAPI_diagrams/UModelAPI_p540.png

typedElements

Interface IUMLConnectionPointReference

Operation

State

Interface IUMLConstraint

Operation

OwningState

Interface IUMLDataAll

Operation

InsertInStateAt OwningState State

Interface IUMLObjectNode

Operation

InsertInStateAt

Interface IUMLPseudostate

Operation

State

Interface IUMLRegion

Operation

State



Operation IUMLState::ConnectionPoints

parameter

name

direction

type

type modifier

multiplicity

default

return

return

IUMLDataList







documentation

A list of elements of type IUMLPseudostate.



Operation IUMLState::Connections

parameter

name

direction

type

type modifier

multiplicity

default

return

return

IUMLDataList







documentation

A list of elements of type IUMLConnectionPointReference.



Operation IUMLState::DoActivity

parameter

name

direction

type

type modifier

multiplicity

default

return

return

IUMLBehavior









Operation IUMLState::Entry

parameter

name

direction

type

type modifier

multiplicity

default

return

return

IUMLBehavior









Operation IUMLState::Exit

parameter

name

direction

type

type modifier

multiplicity

default

return

return

IUMLBehavior









Operation IUMLState::InsertConnectionAt

parameter

name

direction

type

type modifier

multiplicity

default

nIdx

in

int







return

return

IUMLConnectionPointReference









Operation IUMLState::InsertConnectionPointAt

parameter

name

direction

type

type modifier

multiplicity

default

nIdx

in

int







return

return

IUMLPseudostate









Operation IUMLState::InsertRegionAt

parameter

name

direction

type

type modifier

multiplicity

default

nIdx

in

int







return

return

IUMLRegion









Operation IUMLState::IsComposite

parameter

name

direction

type

type modifier

multiplicity

default

return

return

bool









Operation IUMLState::IsOrthogonal

parameter

name

direction

type

type modifier

multiplicity

default

return

return

bool









Operation IUMLState::IsSimple

parameter

name

direction

type

type modifier

multiplicity

default

return

return

bool









Operation IUMLState::IsSubmachineState

parameter

name

direction

type

type modifier

multiplicity

default

return

return

bool









Operation IUMLState::Regions

parameter

name

direction

type

type modifier

multiplicity

default

return

return

IUMLDataList







documentation

A list of elements of type IUMLRegion.



Operation IUMLState::SetNewDoActivity

parameter

name

direction

type

type modifier

multiplicity

default

strKind

in

string







return

return

IUMLBehavior









Operation IUMLState::SetNewEntry

parameter

name

direction

type

type modifier

multiplicity

default

strKind

in

string







return

return

IUMLBehavior









Operation IUMLState::SetNewExit

parameter

name

direction

type

type modifier

multiplicity

default

strKind

in

string







return

return

IUMLBehavior









Operation IUMLState::SetNewStateInvariant

parameter

name

direction

type

type modifier

multiplicity

default

strKind

in

string







return

return

IUMLConstraint









Operation IUMLState::StateInvariant

parameter

name

direction

type

type modifier

multiplicity

default

return

return

IUMLConstraint









Operation IUMLState::Submachine

parameter

name

direction

type

type modifier

multiplicity

default

return

return

IUMLStateMachine
