Interface IUMLGuiSubDiagramNode

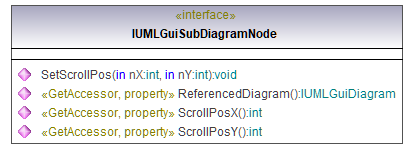

diagram

UModelAPI_diagrams/UModelAPI_p349.png

hierarchy

UModelAPI_diagrams/UModelAPI_p350.png

documentation

The sub diagram node represents a node link on a diagram which again includes another diagram. This is used for example on interaction overview diagrams to display sequence, communication and timing diagrams inside nodes.

The property ReferencedDiagram controls the diagrams which is shown inside the node.



Operation IUMLGuiSubDiagramNode::ReferencedDiagram

parameter

name

direction

type

type modifier

multiplicity

default

return

return

IUMLGuiDiagram









Operation IUMLGuiSubDiagramNode::ScrollPosX

parameter

name

direction

type

type modifier

multiplicity

default

return

return

int









Operation IUMLGuiSubDiagramNode::ScrollPosY

parameter

name

direction

type

type modifier

multiplicity

default

return

return

int









Operation IUMLGuiSubDiagramNode::SetScrollPos

parameter

name

direction

type

type modifier

multiplicity

default

nX

in

int







nY

in

int







return

return

void
