Interface IUMLGuiLineLink

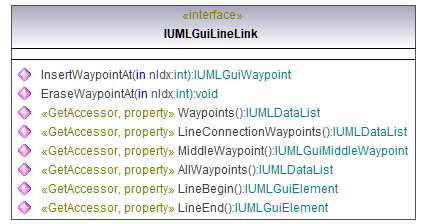

diagram

UModelAPI_diagrams/UModelAPI_p313.png

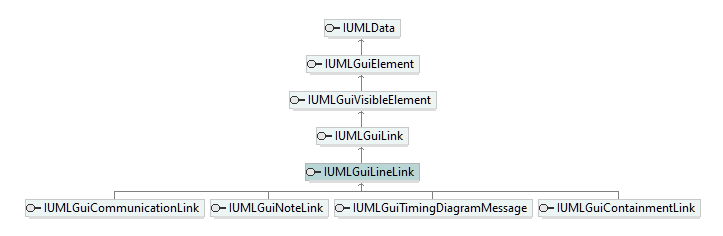

hierarchy

UModelAPI_diagrams/UModelAPI_p314.png

typedElements

documentation

This interface represents a line on a diagram. There are some special lines deriving from this interface available as well.

A line is composed of multiple but at least 2 waypoints which are connected to each other, which can be accessed using the AllWaypoints property. Two of these waypoints are usually of type IUMLGuiEndWaypoint. There may be also a Middlewaypoint accessible with the property MiddleWaypoint which can be used for example to access textlabels and a LineConnectionWaypoint when the line is connected to another line, like to a IUMLGuiNoteLink.

The LineBegin property refers the first object and LineEnd property refers the second graphical object which the line connects.



Operation IUMLGuiLineLink::AllWaypoints

parameter

name

direction

type

type modifier

multiplicity

default

return

return

IUMLDataList







documentation

A derived list of all waypoints which are part of this line. All elements in this list are of type (or subtype of) IUMLGuiWaypoint.



Operation IUMLGuiLineLink::EraseWaypointAt

parameter

name

direction

type

type modifier

multiplicity

default

nIdx

in

int







return

return

void









Operation IUMLGuiLineLink::InsertWaypointAt

parameter

name

direction

type

type modifier

multiplicity

default

nIdx

in

int







return

return

IUMLGuiWaypoint









Operation IUMLGuiLineLink::LineBegin

parameter

name

direction

type

type modifier

multiplicity

default

return

return

IUMLGuiElement







documentation

A reference to the first object, where the line starts.



Operation IUMLGuiLineLink::LineConnectionWaypoints

parameter

name

direction

type

type modifier

multiplicity

default

return

return

IUMLDataList







documentation

A list of all waypoints which connect the line with other lines. All elements in this list are of type (or subtype of) IUMLGuiWaypoint.



Operation IUMLGuiLineLink::LineEnd

parameter

name

direction

type

type modifier

multiplicity

default

return

return

IUMLGuiElement







documentation

A reference to the second object, where the line ends.



Operation IUMLGuiLineLink::MiddleWaypoint

parameter

name

direction

type

type modifier

multiplicity

default

return

return

IUMLGuiMiddleWaypoint









Operation IUMLGuiLineLink::Waypoints

parameter

name

direction

type

type modifier

multiplicity

default

return

return

IUMLDataList







documentation

A list of all waypoints which form the vertices of this line. All elements in this list are of type (or subtype of) IUMLGuiWaypoint.
