Interface IUMLActivity

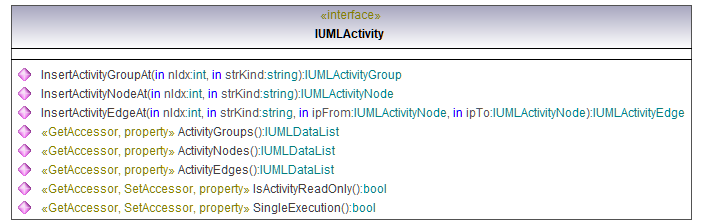

diagram

UModelAPI_diagrams/UModelAPI_p110.png

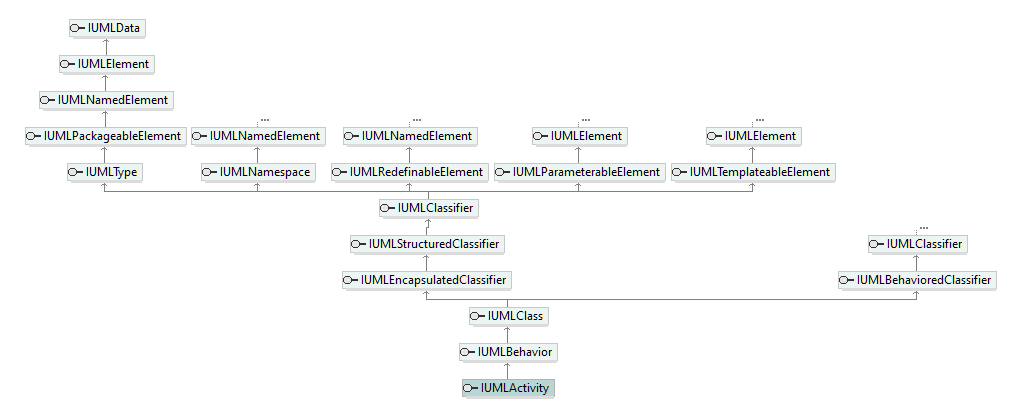

hierarchy

UModelAPI_diagrams/UModelAPI_p111.png

typedElements

Interface IUMLActivityEdge

Operation

Activity

Interface IUMLActivityGroup

Operation

InActivity

Interface IUMLDataAll

Operation

Activity InActivity



Operation IUMLActivity::ActivityEdges

parameter

name

direction

type

type modifier

multiplicity

default

return

return

IUMLDataList







documentation

A list of elements of type IUMLActivityEdge.



Operation IUMLActivity::ActivityGroups

parameter

name

direction

type

type modifier

multiplicity

default

return

return

IUMLDataList







documentation

A list of elements of type IUMLActivityGroup.



Operation IUMLActivity::ActivityNodes

parameter

name

direction

type

type modifier

multiplicity

default

return

return

IUMLDataList







documentation

A list of elements of type IUMLActivityNode.



Operation IUMLActivity::InsertActivityEdgeAt

parameter

name

direction

type

type modifier

multiplicity

default

nIdx

in

int







strKind

in

string







ipFrom

in

IUMLActivityNode







ipTo

in

IUMLActivityNode







return

return

IUMLActivityEdge









Operation IUMLActivity::InsertActivityGroupAt

parameter

name

direction

type

type modifier

multiplicity

default

nIdx

in

int







strKind

in

string







return

return

IUMLActivityGroup









Operation IUMLActivity::InsertActivityNodeAt

parameter

name

direction

type

type modifier

multiplicity

default

nIdx

in

int







strKind

in

string







return

return

IUMLActivityNode









Operation IUMLActivity::IsActivityReadOnly

parameter

name

direction

type

type modifier

multiplicity

default

return

return

bool









Operation IUMLActivity::SingleExecution

parameter

name

direction

type

type modifier

multiplicity

default

return

return

bool
