UModelAPI - IUMLPseudostate

Interface IUMLPseudostate

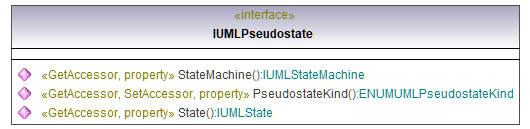

diagram

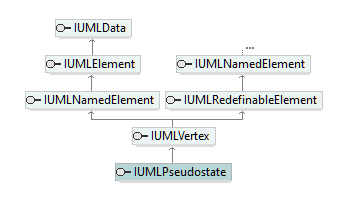

hierarchy

typedElements

Interface IUMLConnectionPointReference	Operation	InsertEntryAt InsertExitAt
Interface IUMLDataAll	Operation	InsertConnectionPointAt InsertEntryAt InsertExitAt
Interface IUMLState	Operation	InsertConnectionPointAt
Interface IUMLStateMachine	Operation	InsertConnectionPointAt

Operation IUMLPseudostate::PseudostateKind

parameter

name	direction	type	type modifier	multiplicity	default
return	return	ENUMUMLPseudostateKind

Operation IUMLPseudostate::State

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLState

Operation IUMLPseudostate::StateMachine

parameter

name	direction	type	type modifier	multiplicity	default
return	return	IUMLStateMachine
