Flow objects are the graphical elements that define the behaviour of a business process. There are three Flow Objects: Events, Activities and Gateways.



Events

An event is something that occurs during a business process and is represented by a circle. Events affect the flow of the process and generally have a cause (trigger) and a result. There are three different types of events: start, intermediate or end, where each group has its own drop-down combo box.

To insert an Event:

1.Click the combo box to open the drop-down list of the type of event you want insert.
2.Select the specific Event and click in the diagram tab to insert it.
event-start

Start Event

event-intermed

Intermediate Event

Intermediate events can be attached to the boundary of a Task or Sub-Process, and show that the activity is to be interrupted when the event is triggered.

event-end

End Event



BMPN 2.0 Events

bp2-start

Start Events

bp2-catch

Catching Events

bp2-throw

Throwing Events

bp2-end

End Events



Activity

Activities are actions that are performed during a business process, and are represented by rounded rectangles. Process models can contain the following types of activity: Process, Sub-Process and Task. Activities can occur singly or multiple times within a loop.

bp-task

To insert an Activity:

1.Click the specific Task or Sub-Process icon of the icon bar.

2.Click in the diagram tab.



Activity - Task

Tasks are activities that are included in a process. Tasks cannot be broken down into lower level subtasks, they are atomic.





Loop Task

bp-task-loop





Multi Instance Task

bp-task-multi





Compensation Task

bp-task-comp



BPMN 2.0 Tasks

bp2-taskTypes

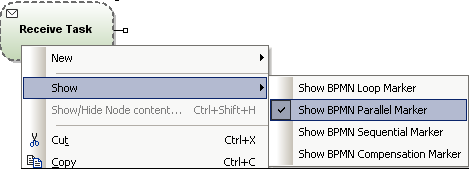

To define a Loop, Parallel, Sequential or Compensation marker:

Right click the inserted task and select the specific marker, e.g. Show | Show BPMN Parallel Marker.

bp2-marker

Note: You can also define the Marker in the Properties tab under the "MultiInstanceLoopCharacteristics entry.



Activity - Sub-Process

A Sub-Process is a compound activity that is included in a process, and allows hierarchical business process model development. A Sub-Process can be broken down into finer detail through various sub-activities.



A collapsed Sub-Process is displayed as a top-level element, where the details of the sub-process are not visible. A "plus" icon in the element shows that an additional layer of complexity exists.



An expanded Sub-Process displays the details of the Sub-Process within its boundaries. Note that a sequence flow cannot cross the boundary of a Sub-Process.



Gateway

Gateways are used to determine how Sequence Flows branch and merge within a process. Gateways are always shown as a diamond (see table below).





Inclusive Gateway (OR)

bp-gate-inclOR



Parallel Gateway (AND)

bp-gate-parAND



Data Based Exclusive Gateway (XOR)

bp-gate-xor



Event Based Exclusive Gateway (XOR)

bp-g-eventXOR



Complex Gateway (Decision/Merge)

bp-gate-decmerge



BPMN 2.0 Gateways

The screenshot below shows supported BPMN 2.0 Gateways. UModel allows you to show an Exclusive Gateway with or without an X. To see the icon with an X, set the value showXIcon of an Exclusive Gateway to true.

bp2-gate
